Two, two barrels on log head

Post #1 by eeyore » Sat Jan 24, 2009 6:58 pm

Has anyone thought of two, two barrels on a log head? Probably Autolite 1.01 or 1.02's. It is really not much more flow than most 3 X 1 set ups. And the small six likes these carbs. No way to do a progressive linkage though. I guess I picture one carb equally spaced between cyl 1 and 3, and anouther between 4 and 6. A direct mount set up would be cheap, but some involved fabrication linkage wise.
Last edited by eeyore on Tue Jan 27, 2009 12:34 pm, edited 2 times in total.
Dave

User avatar
CoupeBoy
VIP Member
Posts: 3422
Joined: Fri Nov 08, 2002 12:17 am
Location: Fargo, ND
Contact:

Post #2 by CoupeBoy » Sat Jan 24, 2009 11:08 pm

Funny you should ask that. I was just looking at some old pictures on my hard drive. A fellow member ducktang sent me some pictures of a log head that had adapters on it to fit 2x2bbls. From what I remember the plate on the original 1bbl hole has a flat plat fitted to *mostly* block off the log, however it was not completely blocked off as it needed to act like a balance tube between the two "halves" of the new intake. I' guess that if you went with a progressive carb like a 32/36 webber (5200) it might work out fairly well on an daily driver.


-ron

User avatar
super4ord
Registered User
Posts: 315
Joined: Thu Dec 18, 2003 8:06 pm
Location: Oklahoma City

Post #3 by super4ord » Sun Jan 25, 2009 12:03 am

Just recently 63comet had a head he had reworked for two Weber 32/36 progressive 2 bbl carbs just as you describe, one for each half of the log. I thought it was a beautiful design. He had briefly put it up for sale on the Forum, but before I responded he deleted the post. I believe he made a wise decision. The improved fuel distribution and increased airflow certainly must have been a vast improvement, such as the triple one barrel setups a few on here have. I know it is not as free flowing as Mike's new aluminum head, but a neat use of ingenuity never the less. It is this type of thinking that got Mike to thinkng about cylinder head improvents so much that drove him to make that head design a reality. Thank you again Mike, for all of your hard work, even though I haven't been able purchase one of the new heads yet.

Darrell
1978 Zephyr Reverse Trike 170 Inline 6/C4...Slowly Progressing Project
1980 Mustang Coupe 200 Inline 6/SROD 4 speed manual...Driving Hotrod Project
2007 Chevrolet HHR Panel Wagon Ecotec 2.2L 4 cyl auto...Daily Driver
2013 Dodge Grand Caravan SXT 3.6L Bent6...Wife's Daily Driver

eeyore
Registered User
Posts: 66
Joined: Sun Jan 15, 2006 9:55 pm
Location: New Berlin, WI

Post #4 by eeyore » Sun Jan 25, 2009 12:29 am

Thanks guys, Ron's pictures are exactly what I was thinking. I too thought a divider may be needed to inprove the respose with the two comparativly big carbs. I never even thought about the progresive carbs, that's a good idea. Ultimately I'd like to use Mike's head and make a multi-carb intake. I would like to use a small six in a street rod and I like the multi-carb look, especialy on a six. But at this time the whole street rod budget is in question let alone Mike's head. Like alot of people these days I lost my job just before the holidays :( But life goes on, I'll have a job in time. Thanks again guys, and yes, thanks to Mike for everything he does for our little forgotten engine!
Dave

63comet
Registered User
Posts: 260
Joined: Fri Nov 08, 2002 8:49 am
Location: Upstate NY, way upstate

Post #5 by 63comet » Sun Jan 25, 2009 9:45 am

It still is for sale, I am not going ahead with the project as I decided to sell the head as well as the new cam and roller timing set from Mike, I am also going to sell off the spare motor and the transmission that was rebuilt (C4). I am just waiting to put everything on Ebay.
1963 Comet tudor with a 250 that has 255 v8 pistons, clifford cam 264*, clifford dual outlet headers with dual 2" exhaust thru glasspack turbo mufflers, mildly ported head with a Weber 38dgas directly mounted on intake log, and DII dizzy and MSD6AL ignition. C4 auto that has been rebuilt .

Hot 6t Falcon
VIP Member
Posts: 458
Joined: Fri Nov 08, 2002 10:16 pm
Location: Grand Forks, ND
Contact:

Two progressive two barrels on a log.

Post #6 by Hot 6t Falcon » Mon Jan 26, 2009 12:47 pm

To 63 Comet.

Do you have any pictures you could post of your two progressive two barrels on a log?

Either with the progressive carbs on the head, or just the plates on the log?

Or even better... both ways ! !

Dennis
Dennis Schjeldahl, (say Shell-doll)
Co-Author of The Ford Falcon Performance Handbook
http://www.falcon6handbook.com

63comet
Registered User
Posts: 260
Joined: Fri Nov 08, 2002 8:49 am
Location: Upstate NY, way upstate

Post #7 by 63comet » Mon Jan 26, 2009 5:13 pm

Dennis, I will take some pics tommorrow and post on here if I can figure it out. Thanks, Homer
1963 Comet tudor with a 250 that has 255 v8 pistons, clifford cam 264*, clifford dual outlet headers with dual 2" exhaust thru glasspack turbo mufflers, mildly ported head with a Weber 38dgas directly mounted on intake log, and DII dizzy and MSD6AL ignition. C4 auto that has been rebuilt .

User avatar
CoupeBoy
VIP Member
Posts: 3422
Joined: Fri Nov 08, 2002 12:17 am
Location: Fargo, ND
Contact:

Post #8 by CoupeBoy » Mon Jan 26, 2009 5:37 pm

If you can't figure out how to get them posted, feel free to email them to me and I'll get them onto here.

-ron

Soldmy66
Registered User
Posts: 370
Joined: Fri Jan 09, 2004 11:09 pm

Post #9 by Soldmy66 » Mon Jan 26, 2009 5:38 pm

I would love to see them. This has long since been what I believe to be a just about perfect DIY intake solution for the 200.

peugeot bill
Registered User
Posts: 52
Joined: Fri Nov 22, 2002 3:18 pm

Post #10 by peugeot bill » Mon Jan 26, 2009 10:22 pm

yes virginia there is that cyl head,
it's on the mustang we have, here's a more current photo
http://s608.photobucket.com/albums/tt167/peugeot_bill/

MPGmustang
FSP Moderator
Posts: 1610
Joined: Fri Jan 09, 2009 10:23 pm
Location: Chandler AZ

Post #11 by MPGmustang » Tue Jan 27, 2009 12:30 am

8)
i wonder if you'd get the same performance with two 1100v pony carbs mounted in a simular way. :lol:

if so i'm halfway there.... :twisted:
65mustang-SOLD-200ci-t5-scarebird disks-vintage air ac-264/274 110 cam-mav 8inch 3.8 open-350cfm-CI headers
66 Bronco-SOLD-i6 170 - rust bucket never ran...
75 bronco-SOLD-v8 c4 dana 20 33's and disk brakes, locker front/rear.

Inline6Merc
Registered User
Posts: 326
Joined: Fri Jul 23, 2004 1:53 pm
Location: SF Bay Area

Post #12 by Inline6Merc » Tue Jan 27, 2009 1:10 am

I ran two 1100's on my old engine and it ran really good all through out the rpm range. I started on a head like the one being discussed with two progressive 5200's. The plus too all this DIY self custom work is more horsepower and one bitchin lookin motor!

-Curtis
64 Mercury Comet 204c.i.
DUI Ignition
Clifford dual out headers
10.2 to 1 Compression
CI Aluminum Head/Intake Manifold
480cfm Autolite 4 bbl
278 Solid Lifter Cam
1.6 ratio Roller Rockers
2500 Stall Converter
C4 Transmission
3.50gears
8inch Rear End

gb500
Registered User
Posts: 302
Joined: Wed Jan 17, 2007 9:24 pm
Location: melbourne ,australia

Post #13 by gb500 » Tue Jan 27, 2009 6:18 am

reason twin carbs work well is to do with the firing order of the six's -

when you divide the log into front(cyl 123) and back (cyl 456)
-effectively you have two 3 cyl engines.( 1st carb serving 1,2,3 and second carb serving 4,5,6) and why a divider where the orig single carb is to give the 2 off 3 cyl engines





ie with ford firing order 1,5,3,6,2,4 you have even intake pulses though each of the two carbs as the cyl 1 intake sucks though the first carb and then 120deg later the cyl 5 and 120 deg later back ( cyl3) to the the first carb and so on. so an intake pulse through each carb every 240deg

-
note also generally thats how the extractors are set up ie cyl 123 and 456

the base model 60's 6cyl jags used twin carbs as above - and tripple carbs for the hotter models

of course tripples look sexier and probably give better distribution in the constricted log ford head

but on the tripples(to clarify with the triples these intake pulses are if you have separate carb/intake/runners per pair of cylinders)
the intake pulse spacing are different across the 3 carbs

( something like 480 and 240deg for carb serving 1,2 , 480 and 240 deg for carb serving 5,6 and 360 and 360 for carb serving 3,4) - if my scribbles are correct

if the tripple carbs are connected to the open log, then the log acts as sort of a plenum and will dampen/even out the pulsing effect out.

but at the end of the day 1 , 2, 3 (or even 4,5,6) carbs will work.


brett

FALCONAROUND
Registered User
Posts: 350
Joined: Wed Jan 24, 2007 1:22 pm
Location: Gorst-Orchard 39 miles from Lord Murff
Contact:

Post #14 by FALCONAROUND » Tue Jan 27, 2009 11:10 am

I've been building a Two 2V log head for about 3 years...

It's a little more radical than yours but basically the same :)

I'm going to likely use 2 autolite 2100's with the 1.08" venturi's and will have more than enough A/F to fun my little monster.

Also, about the divider between the carb's, basically making it a Dual Plane intake manifold; as far as the cubes we have and the relatively short stroke and small area of intake runner, it would likely be useless.
I've gone over it with several hugely known performance engine builders and can find no reason to divide them.


FE

eeyore
Registered User
Posts: 66
Joined: Sun Jan 15, 2006 9:55 pm
Location: New Berlin, WI

Post #15 by eeyore » Tue Jan 27, 2009 12:30 pm

Wow! I didn't know what I was starting, this is great! Falcon & inline6, do you have any pictures of your set ups that you can share?

I understand that splitting the manifold creates a dual plane, and I think for driveability with the two big carbs it may have merit. It would be real easy to test after the rest of the work is done. Make a removeable divider try it in and try it out. A couple of slots milled in the original carb opening to hold the divider is no big deal while you've having the manifold milled anyway.
Dave

Soldmy66
Registered User
Posts: 370
Joined: Fri Jan 09, 2004 11:09 pm

Post #16 by Soldmy66 » Tue Jan 27, 2009 1:03 pm

I'd love to see pics as well.

63comet
Registered User
Posts: 260
Joined: Fri Nov 08, 2002 8:49 am
Location: Upstate NY, way upstate

Pics of head

Post #17 by 63comet » Tue Jan 27, 2009 3:06 pm

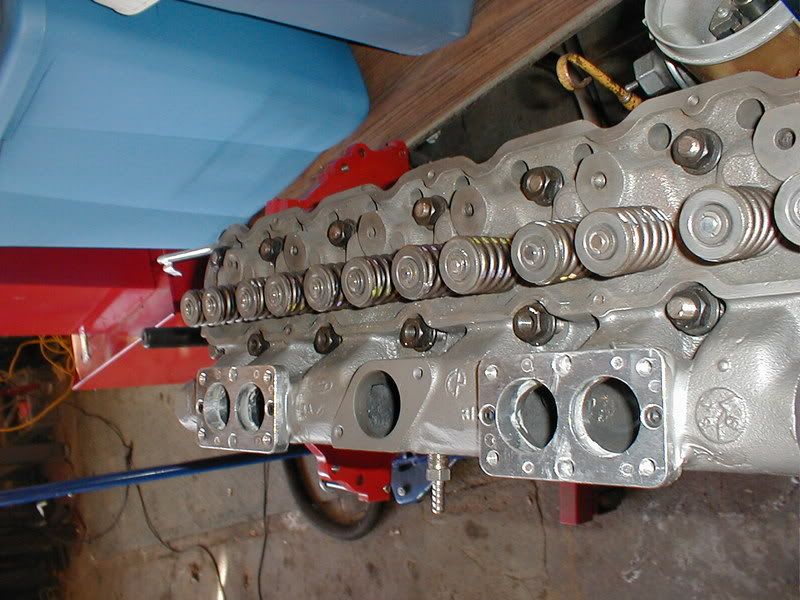

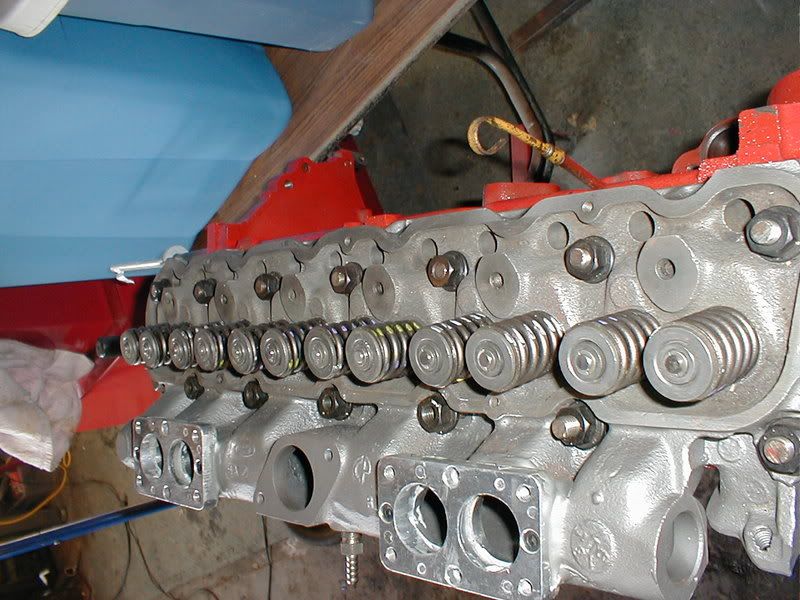

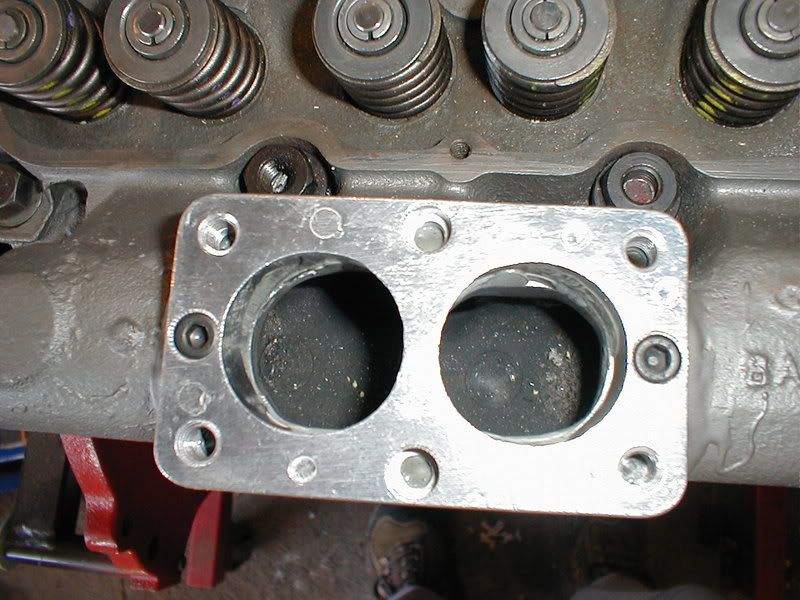

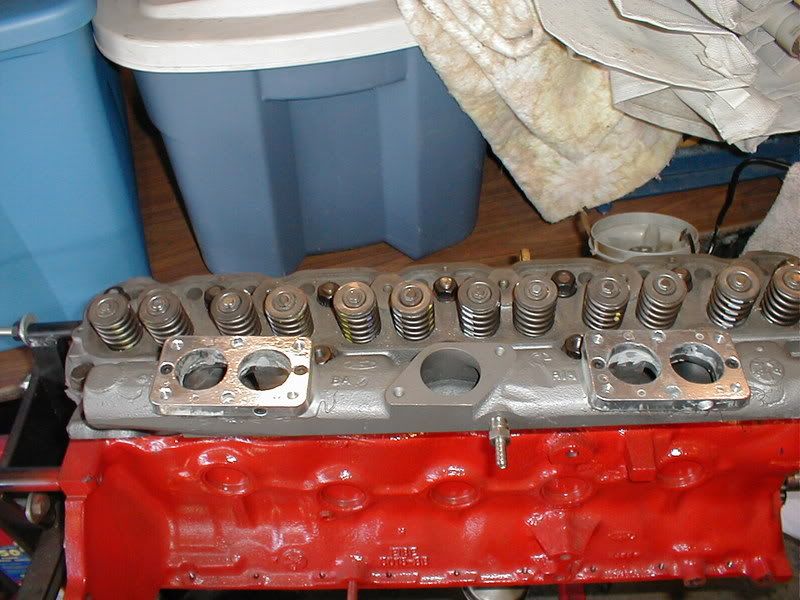

Dennis and all, Here are the pics of the head I had done this summer, It has new valves,(1.5 exhaust and 1.75 intake), new 289 valve springs and keepers and retainers, 3 angle valve job, and head planed for straightness.
[/img]
Last edited by 63comet on Wed Jan 28, 2009 12:23 pm, edited 1 time in total.
1963 Comet tudor with a 250 that has 255 v8 pistons, clifford cam 264*, clifford dual outlet headers with dual 2" exhaust thru glasspack turbo mufflers, mildly ported head with a Weber 38dgas directly mounted on intake log, and DII dizzy and MSD6AL ignition. C4 auto that has been rebuilt .

User avatar
ludwig
VIP Member
Posts: 3262
Joined: Wed Jan 28, 2004 12:11 am
Location: Las Vegas, baby!!

Post #18 by ludwig » Tue Jan 27, 2009 3:54 pm

Is that the round or the oval log head? And what did you use to seal around the mounting plates? JB Weld or brazing or what? That thing looks great too.

Livin' the dream. Dad n' daughter.

63comet
Registered User
Posts: 260
Joined: Fri Nov 08, 2002 8:49 am
Location: Upstate NY, way upstate

Post #19 by 63comet » Tue Jan 27, 2009 5:27 pm

It was a oval 78 log and what the machine shop used was some kind of high temp furnace epoxy. I have the same thing done on the head in the comet and I have run it for 3 years now with no problems. The same machine shop mounted a single plate on that one also.
1963 Comet tudor with a 250 that has 255 v8 pistons, clifford cam 264*, clifford dual outlet headers with dual 2" exhaust thru glasspack turbo mufflers, mildly ported head with a Weber 38dgas directly mounted on intake log, and DII dizzy and MSD6AL ignition. C4 auto that has been rebuilt .

User avatar
bookworm007
Registered User
Posts: 101
Joined: Tue Nov 06, 2007 12:10 am
Location: Battle Ground, WA

Post #20 by bookworm007 » Wed Jan 28, 2009 12:14 pm

That looks awesome 63comet. How much did it cost to have the head adapted that way?

63comet
Registered User
Posts: 260
Joined: Fri Nov 08, 2002 8:49 am
Location: Upstate NY, way upstate

Post #21 by 63comet » Wed Jan 28, 2009 12:22 pm

For all the work minus the parts, the machine shop charged me 400.00. That included, magnafluxing and planing as well as 3 angle valve job and installing the valves. He also painted it with something to keep it from rusting It is for sale on Ebay including 4 H/W carbs and many extra parts for the carbs.
1963 Comet tudor with a 250 that has 255 v8 pistons, clifford cam 264*, clifford dual outlet headers with dual 2" exhaust thru glasspack turbo mufflers, mildly ported head with a Weber 38dgas directly mounted on intake log, and DII dizzy and MSD6AL ignition. C4 auto that has been rebuilt .

User avatar
jamyers
VIP Member
Posts: 1639
Joined: Sun Jun 12, 2005 1:57 pm
Location: Buffalo Gap, TX

Post #22 by jamyers » Wed Jan 28, 2009 2:12 pm

James - '62 Ranchero (200cid), '71 LeSabre (464cid)

The ONLY safety device we need is a 6" sharpened steel spike bolted to the center of the steering wheel of EVERY vehicle.
Emergency Rooms and Funeral Homes will be busy for a week or so, then I predict a dramatic drop in vehicle accidents.

grocery getter
Registered User
Posts: 579
Joined: Sun Jul 17, 2005 11:56 pm
Location: sacramento

Post #23 by grocery getter » Wed Jan 28, 2009 2:21 pm

Nice setup, post a link on the fleabay forum :idea:


Edit---> Thanks jamyers 8)

User avatar
bookworm007
Registered User
Posts: 101
Joined: Tue Nov 06, 2007 12:10 am
Location: Battle Ground, WA

Post #24 by bookworm007 » Wed Jan 28, 2009 3:53 pm

second question about your set up did u have the carb mounts custom made or is there somewhere u can buy them?

63comet
Registered User
Posts: 260
Joined: Fri Nov 08, 2002 8:49 am
Location: Upstate NY, way upstate

Post #25 by 63comet » Wed Jan 28, 2009 4:14 pm

The adapters I mounted on the log are spacers for the H/W 5200 or Weber 32/36 carbs.
1963 Comet tudor with a 250 that has 255 v8 pistons, clifford cam 264*, clifford dual outlet headers with dual 2" exhaust thru glasspack turbo mufflers, mildly ported head with a Weber 38dgas directly mounted on intake log, and DII dizzy and MSD6AL ignition. C4 auto that has been rebuilt .

Hot 6t Falcon
VIP Member
Posts: 458
Joined: Fri Nov 08, 2002 10:16 pm
Location: Grand Forks, ND
Contact:

I'm Impressed! !

Post #26 by Hot 6t Falcon » Thu Jan 29, 2009 1:26 am

Howdy again,

I AM IMPRESSED ! ! !

Dennis
Dennis Schjeldahl, (say Shell-doll)
Co-Author of The Ford Falcon Performance Handbook
http://www.falcon6handbook.com

User avatar
sasktrini
Registered User
Posts: 148
Joined: Tue May 20, 2008 6:04 pm
Location: Saskatoon, SK Canada

Post #27 by sasktrini » Thu Jan 29, 2009 9:39 am

This is really cool! I like the front / back analysis. I've seen pics of the triple, but a double log makes great sense too! I'd be inclined to try a double 1B! Great stuff! Great work guys!
sasktrini, Saskatoon, SK, Canada


grocery getter
Registered User
Posts: 579
Joined: Sun Jul 17, 2005 11:56 pm
Location: sacramento

Post #28 by grocery getter » Tue Feb 03, 2009 4:17 pm

sold, looks like someone got a smokin' deal.

Harte3
VIP Member
Posts: 2642
Joined: Sat Oct 21, 2006 9:17 pm
Location: Spokane, WA

5200 and other HW or Weber Carb Jets

Post #29 by Harte3 » Fri Feb 13, 2009 6:30 pm

http://www.webercarbsdirect.com/Main_Je ... 01.xxx.htm

Are those the jets you are using for 5200's or other Weber jets?

Is it correct to say from the chart found here :arrow: http://www.surpluselectron.com/aaron/holley.htm that the jet size (mm) listing is the newer designation for the old Holley listing?

For example: If the Holley PN listing was a 124-200 than the corresponding jet on the chart would be a 125?
'83 F150 300, 0.030 over, Offy DP, Holley 4160/1848-1 465 cfm, Comp Cam 260H. P/P head, EFI exhaust manifolds, Walker Y Pipe, Super Cat, Turbo muffler, Recurved DSII, Mallory HyFire 6a, ACCEL Super Stock Coil, Taylor 8mm Wires, EFI plugs.
