Pulling my 200 - Lift Points?

Moderator: Mod Squad

PoppyRed_65
Registered User
Posts: 7
Joined: Mon Mar 13, 2017 2:54 pm

Pulling my 200 - Lift Points?

Post #1 by PoppyRed_65 » Thu Mar 16, 2017 11:23 am

Hi all
Been away for quite some time and lost all my old user info so my old posts went to...but I'm finally back to working on my 65.

Long story short..there will be many more questions coming I'm sure...I'm pulling my 200 & C4 next weekend. First time I've pulled an engine so still a little not sure what to expect. My apologies about the stupid questions up front.

Has anyone done this and have photos? I'm much more visual in understanding what goes where. If not, from the posts I've read, it's my understanding I can use a few different points to attach the chains. One of the engine mount holes with a opposite side tranny/engine mount, opposite corners of the head using the head bolts...etc...

Also, I keep reading about washers...I'm assuming the washers are to stop the chain link from slipping over the bolt head. I'll probably rent a lift and buy a load leveler to help.

Sorry about the dumb questions that will be coming. I really should have taken shop back in the day. Working on the car by myself has been really fulfilling...it's just learning as I go that makes it interesting sometimes.

Thanks a bunch for any suggestions.

Jeremy

User avatar
chad
Registered User
Posts: 4737
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: Pulling my 200 - Lift Points?

Post #2 by chad » Thu Mar 16, 2017 7:23 pm

do U have a man or auto & will U pull them as a unit?
more bout ur plan, just 2 help me (us) visualize (like U), eh?
:wink:
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
powerband
FSP Moderator
Posts: 1958
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Pulling my 200 - Lift Points?

Post #3 by powerband » Thu Mar 16, 2017 9:05 pm

PoppyRed_65 wrote:Hi all... First time I've pulled an engine so still a little not sure what to expect... it's my understanding I can use a few different points to attach the chains. One of the engine mount holes with a opposite side tranny/engine mount, opposite corners of the head using the head bolts..I'll probably rent a lift and buy a load leveler to help.

Thanks a bunch for any suggestions.
Jeremy


Where ya at?

... relax , just make sure everything's disconnected and rad' out. , with tranny it seems to go almost vertical to get out, not quite really but a load leveler is real good idea.

some early and all (?) later have flat metal lifting eyes. You can use the eye's bolt-holes to attach chain or fab similar. Without tranny a rope/chain sling can cradle engine out.




have fun
"Take time to stop and smell... The roadkill..."

User avatar
wsa111
FSP Moderator
Posts: 3245
Joined: Sat Jan 24, 2004 5:28 pm
Location: South Carolina
Contact:

Re: Pulling my 200 - Lift Points?

Post #4 by wsa111 » Thu Mar 16, 2017 9:42 pm

67 mustang,C-4, with mod. 80 hd, custom 500 cfm carb with annular boosters, hooker headers, dual exh.-X pipe, flowmaster mufflers, DSII dist. MSD-6al & MSD-Blaster 8252 Coil. Engine 205" .030" over with offset ground crank & 1.65 roller rockers. 9.5 comp., Isky 262 cam.
2003 Ford Lightning daily driver. Recurving Distributors. billythedistributorman@live.com

User avatar
chad
Registered User
Posts: 4737
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: Pulling my 200 - Lift Points?

Post #5 by chad » Thu Mar 16, 2017 11:08 pm

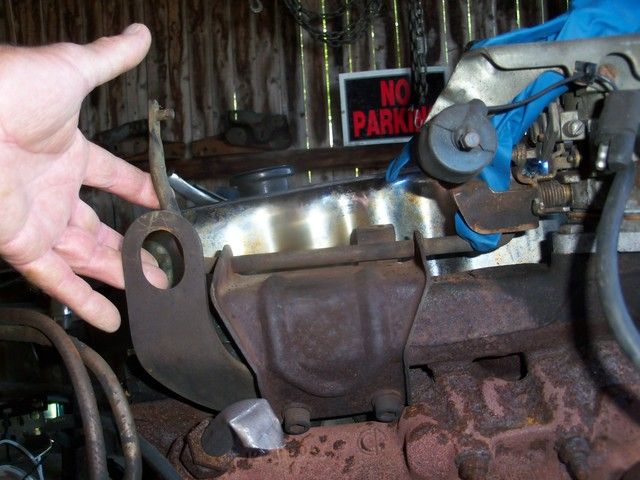

been askin folks for a schematic (sketch, graph paper representation, anything!)
to match those oe (yes ford made/left them on engines) 'lift eyes' as "X" has labeled them.

Can any one help me - us ???
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

PoppyRed_65
Registered User
Posts: 7
Joined: Mon Mar 13, 2017 2:54 pm

Re: Pulling my 200 - Lift Points?

Post #6 by PoppyRed_65 » Thu Mar 16, 2017 11:34 pm

Ahhh those are good photos. Thanks for posting!

It's a C4 auto. Kind of a mish mash of parts right now. 78 block, 65 head and a bunch of broken half assed stuff. Auto lite 1100 that leaks like a sive. Will be following up with more since my head is probably toast. Two exhaust manifold ears are broken and I fought for a long time trying to seal the thermostat housing.

Been in the SF Bay Area for the last 15yrs but just moved last year to about 20mi NE of LA. Hence kinda falling off the map working on the car for awhile transitioning.

User avatar
chad
Registered User
Posts: 4737
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: Pulling my 200 - Lift Points?

Post #7 by chad » Fri Mar 17, 2017 7:06 pm

powerband wrote: some early and all (?) later have flat metal lifting eyes. You can use the eye's bolt-holes to attach chain or fab similar. Without tranny a rope/chain sling can cradle engine out.
have fun


I know - it's just a lill over 400 lbs.

U (or any 1 else?) have a sketch or template (anything?) to make up those 2 'plates' myself?
I've never seen them except here (& I think, just on yours, powerband).
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
powerband
FSP Moderator
Posts: 1958
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Pulling my 200 - Lift Points?

Post #8 by powerband » Sat Mar 18, 2017 9:42 am

while we're at it:

Small block sixes with Automatic trannys had the lifting eyes integral with the tranny/carb kickdown rod bellcrank .



A simple heavy strap can be used at front eye location or chain ,just please don't use top-rear Exhaust Flange on head (!) .




have fun
"Take time to stop and smell... The roadkill..."

PoppyRed_65
Registered User
Posts: 7
Joined: Mon Mar 13, 2017 2:54 pm

Re: Pulling my 200 - Lift Points?

Post #9 by PoppyRed_65 » Mon Mar 20, 2017 4:31 pm

Those photos are really helpful.

I have the flat spot on the driver side front of the block that should be perfect. As for the back passenger side, are there points between the exhaust manifold and block? I can't really tell. My manifold is so old I may pull it first.

I was also thinking the c4 to block mount would be good to help with the extra weight with the transmission. Is that point strong enough to lift by in case I don't have the one in that 2nd photo at the rear of the head?

User avatar
ludwig
VIP Member
Posts: 3262
Joined: Wed Jan 28, 2004 12:11 am
Location: Las Vegas, baby!!

Re: Pulling my 200 - Lift Points?

Post #10 by ludwig » Mon Mar 20, 2017 5:11 pm

You might not want to pull the exhaust manifold. If it is really rusty and fused, you could break off a bolt or two and/or one or more bolt lugs,

Livin' the dream. Dad n' daughter.

User avatar
powerband
FSP Moderator
Posts: 1958
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Pulling my 200 - Lift Points?

Post #11 by powerband » Mon Mar 20, 2017 6:49 pm

PoppyRed_65 wrote:I was also thinking the c4 to block mount would be good to help with the extra weight with the transmission. Is that point strong enough to lift by in case I don't have the one in that 2nd photo at the rear of the head?


I think all (?) later 60's heads have the threaded casting holes on passenger side intake runner above exhaust manifold . I would be confident lifting with a proper bolt in the bellhouse -to-block bolt (not starter bolt as in picture !).

haev fun
"Take time to stop and smell... The roadkill..."

User avatar
1bad6t
Registered User
Posts: 100
Joined: Wed May 26, 2010 11:02 pm
Location: 35 miles south of Atlanta
Contact:

Re: Pulling my 200 - Lift Points?

Post #12 by 1bad6t » Tue Mar 21, 2017 12:54 pm

There are no bolt holes to bolt the lifting eyes on my '63. I used the generator bracket and a bolt screwed into where the ball for the Z-bar.


Jeff in Georgia
'74 Maverick 250/C4

User avatar
powerband
FSP Moderator
Posts: 1958
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Pulling my 200 - Lift Points?

Post #13 by powerband » Tue Mar 21, 2017 9:05 pm

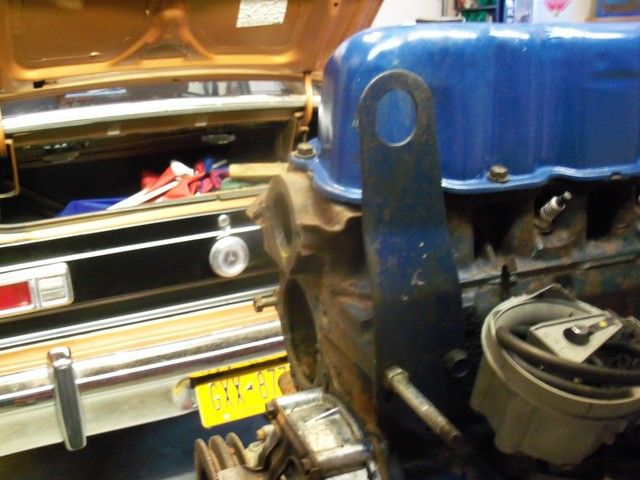

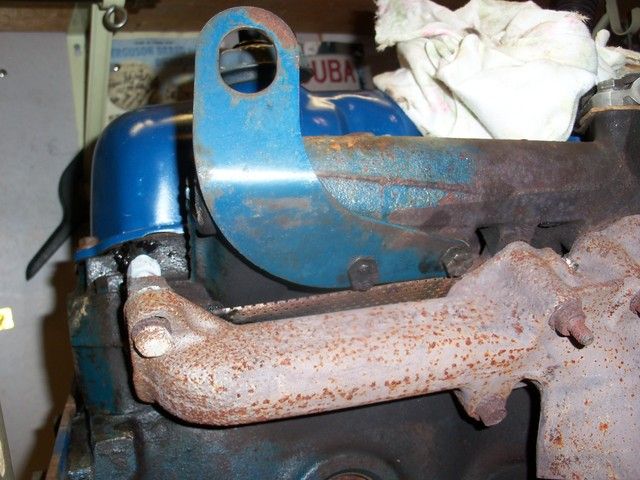

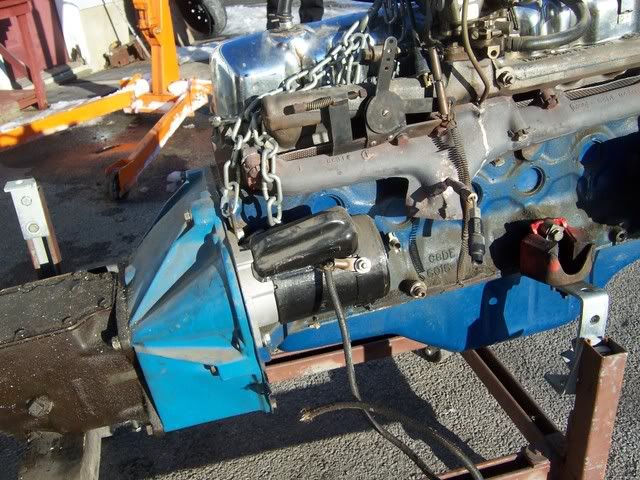

More good pictures for reference about lifting options.

Note also the 'early' small bellhouse engine block with @ 2" between Head/deck and Bell house.

haev fun
"Take time to stop and smell... The roadkill..."

PoppyRed_65
Registered User
Posts: 7
Joined: Mon Mar 13, 2017 2:54 pm

Re: Pulling my 200 - Lift Points?

Post #14 by PoppyRed_65 » Wed Mar 22, 2017 10:08 am

Perfect!
I was looking last night and my 65 head doesn't have those points. The block has a flat spot on the front passenger under the exhaust manifold and the z bar mount will be perfect.

I ended up pulling the exhaust manifold after using a mirror to look for those points in the photos above....come to find out I had a 6in crack on the underside. after I got it out I dropped it on the driveway and the Damn thing broke in half.... :shock:

User avatar
ludwig
VIP Member
Posts: 3262
Joined: Wed Jan 28, 2004 12:11 am
Location: Las Vegas, baby!!

Re: Pulling my 200 - Lift Points?

Post #15 by ludwig » Wed Mar 22, 2017 11:11 am

What I was saying.

Livin' the dream. Dad n' daughter.

PoppyRed_65
Registered User
Posts: 7
Joined: Mon Mar 13, 2017 2:54 pm

Re: Pulling my 200 - Lift Points?

Post #16 by PoppyRed_65 » Wed Mar 22, 2017 4:16 pm

ludwig wrote:What I was saying.


Yup totally. When I saw the crack I knew it would be toast and the head likely as well with the broken manifold mounting ears being broken. Just had no idea it was that trashed.

Two of the bolts had threaded inserts that were seized..... I'm guessing those aren't stock, so the head has been broken, drilled out, broken some more etc....

As I get more into the car I'm pissed I was driving it in this condition....the u-joint nuts were finger tight, transmission pan less than finger tight, cracked and not even attached at the broken ears exhaust manifold, steering and suspension toast...going to be quite the "hobby"

User avatar
woodbutcher
VIP Member
Posts: 2049
Joined: Tue Mar 21, 2006 10:14 pm
Location: LaFollette Tn.

Re: Pulling my 200 - Lift Points?

Post #17 by woodbutcher » Wed Mar 22, 2017 10:15 pm

:hmmm: Gee Poppy red.That`s all part of the old car hobby :bang: :bang: .
Good luck.have fun.Be safe.
Leo
"People never lie so much as after a hunt,during a war,or before an election".
Otto von Bismarck

User avatar
CoupeBoy
VIP Member
Posts: 3422
Joined: Fri Nov 08, 2002 12:17 am
Location: Fargo, ND
Contact:

Re: Pulling my 200 - Lift Points?

Post #18 by CoupeBoy » Fri Mar 24, 2017 12:36 pm

Sorry for the late reply.

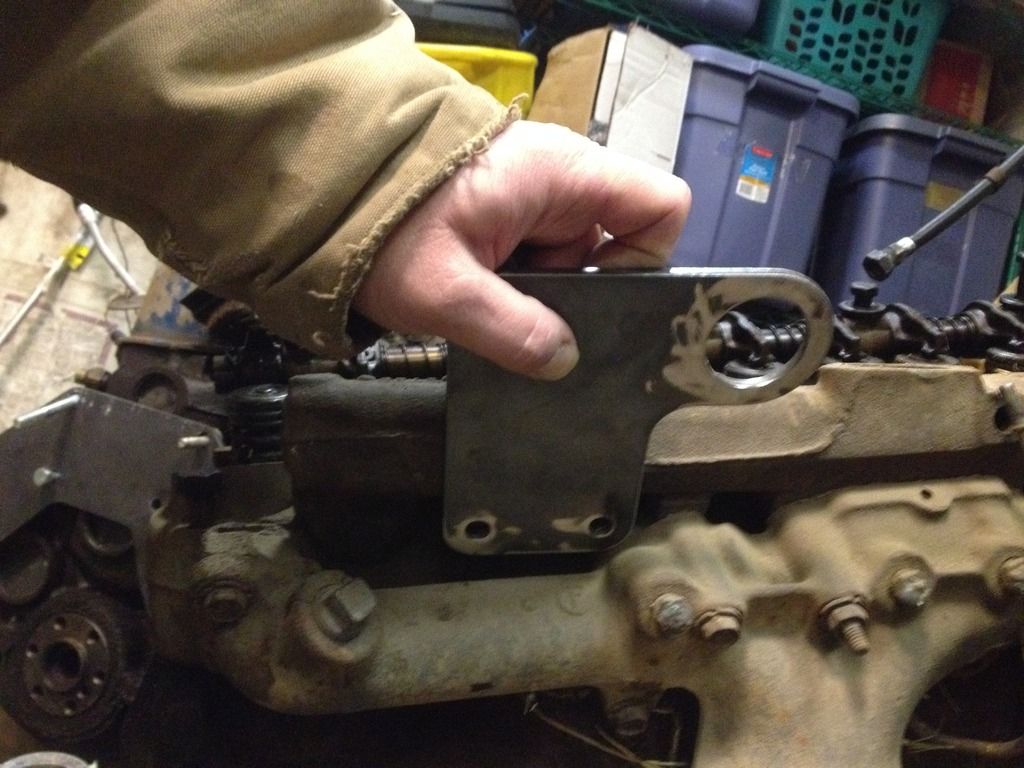

Chad, you never asked ME about lift brackets..
I can cut some of these if you need a set.

For the rear, I designed this one. I didn't know about the one for automatics.

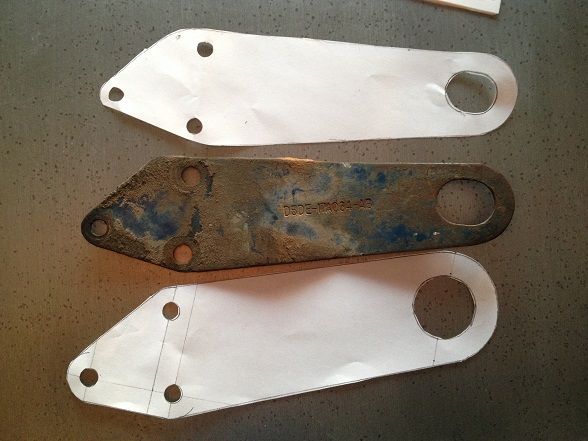

And I used this original one off a 250 to design some papermodels.

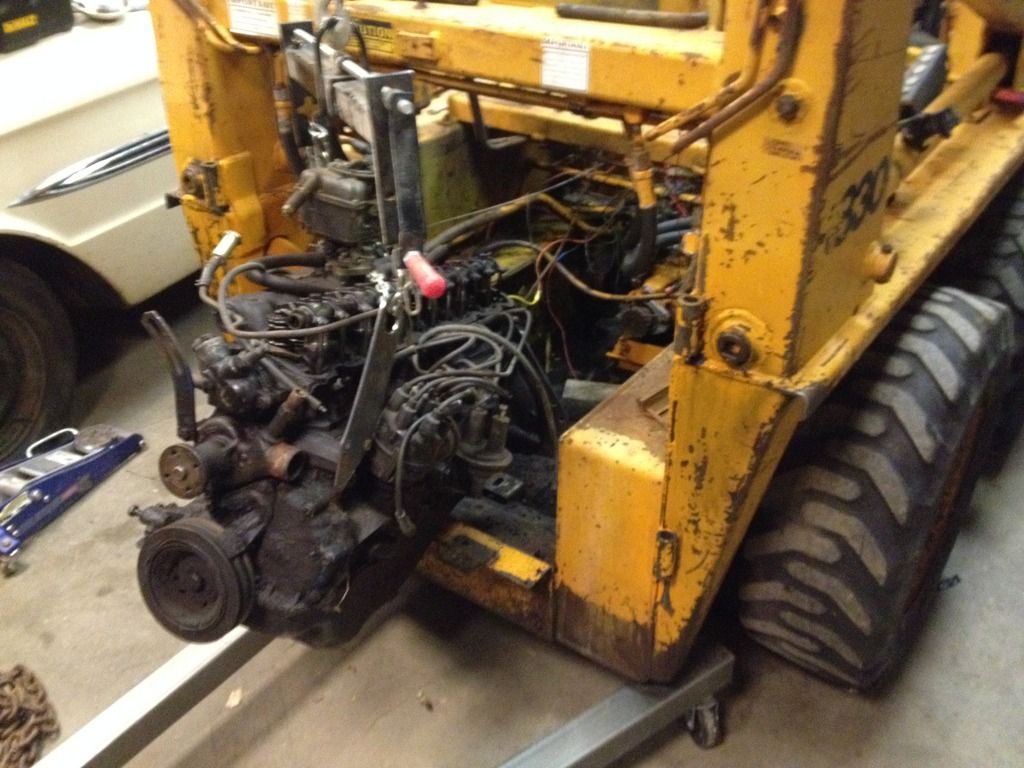

I made this one, and used it for installing the motor into my skidsteer..
1968 Mustang Daily Driver Rebuild (on hold for the Season 3/1/2015)
1963.5 Falcon Convertible Build (just getting started 3/15/2015)
Case 1830 Skidsteer FordSix Repower Thread (started 4/4/2015)
1970 170/C4
1967 200/C4
1965 240/bellhousing/flywheel/clutch/3.03 bell pattern
1975 250/flexplate
1975 300/flywheel

User avatar
chad
Registered User
Posts: 4737
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: Pulling my 200 - Lift Points?

Post #19 by chad » Fri Mar 24, 2017 9:07 pm

kouwell!
& look @ powerband's
oposite side & has a lill bend (that's minor/after the fact).
thanks !
keep goin dude! (3/4 the way there)
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

PoppyRed_65
Registered User
Posts: 7
Joined: Mon Mar 13, 2017 2:54 pm

Re: Pulling my 200 - Lift Points?

Post #20 by PoppyRed_65 » Mon Mar 27, 2017 4:38 pm

woodbutcher wrote::hmmm: Gee Poppy red.That`s all part of the old car hobby :bang: :bang: .
Good luck.have fun.Be safe.
Leo



Yes indeed! Got the engine out, sat back, had a beer and thought...whelp...now the real work begins!
