engine / piston pics

Post #1 by worken2much » Tue Mar 31, 2009 11:27 pm

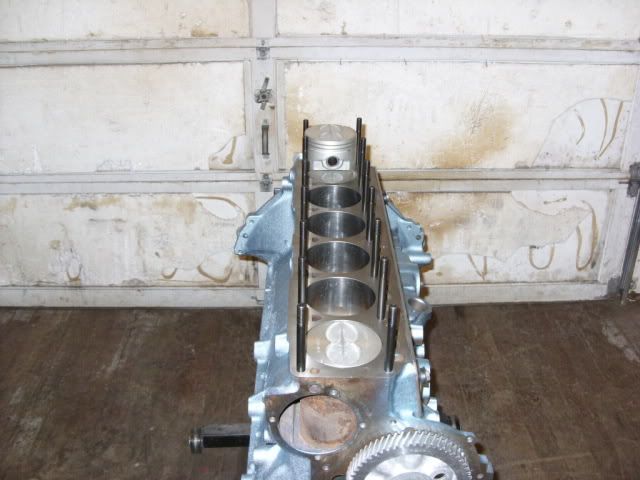

300 with Federal Mogul Speed Pro hypers #H395. For Ford 360 V8. Work with stock 300 rods with .975 pin diameter. Required .050 over bore, required .042 off top of block for near zero deck. Pistons down .004 at tdc. Pistons bought for $10 each for set of eight + freight. 1.94 & 1.6 valve diameters, home port & polish, 290 duration solid lifter cam, .460 gross valve lift, Arp head studs & rod bolts, aluminum cam gear. Two Holley 4412 two barrels on Clifford intake, open headers. Circle track application.

Any guess at HP?

Worken2much
[img][img]http://i570.photobucket.com/albums/ss150/Big1vintage/036.jpg[/img][/img]Image[img][img]http://i570.photobucket.com/albums/ss150/Big1vintage/034-1.jpg[/img][/img][/url]

User avatar
powerjunkie
Registered User
Posts: 205
Joined: Thu Mar 06, 2008 11:17 pm
Location: Nipomo, Ca

Post #2 by powerjunkie » Wed Apr 01, 2009 6:15 am

OOOooOOooO AHHhHhHhhhh :shock: pretty!
"Fix it Till its Broke, Repeat"

1980 F-150 Ranger 300ci M5OD-R2, 3.50 gears

1980 F-150 4X4 300ci (unknown aftermarket cam) mild port job, NP435 trans. 3.50 gears

User avatar
worken2much
Registered User
Posts: 657
Joined: Sat Jan 31, 2004 9:01 pm

Post #3 by worken2much » Wed Apr 01, 2009 7:03 am

Here is where it is going to live.[img][img]http://i570.photobucket.com/albums/ss150/Big1vintage/IMG_3408.jpg[/img][/img]

Thad
FSP Moderator
Posts: 1636
Joined: Thu Nov 07, 2002 11:56 pm
Location: Vinton, La / Orange,Tex --- Hurricane Alley

Post #4 by Thad » Wed Apr 01, 2009 8:29 am

Would love to hear it sing! :wink:
There are those who just dream,
and there are those who do more than dream. ><> = +

91bronc300
Registered User
Posts: 9
Joined: Tue Mar 10, 2009 8:47 pm

Post #5 by 91bronc300 » Wed Apr 01, 2009 9:36 am

That is a seriously sweet paint scheme :banana: what type of paint is that?

mutt
VIP Member
Posts: 1666
Joined: Fri May 09, 2003 1:51 pm
Location: Santa Barbara, Ca.
Contact:

Post #6 by mutt » Wed Apr 01, 2009 11:29 am

looks like he raided the Wifes nailpolish stash..........pretty awesome there, dude. You got the chops to post an audio file for us? might sound good on the answering machine......

User avatar
crash-harris
Registered User
Posts: 711
Joined: Mon Mar 17, 2008 10:26 pm
Location: Chillicothe, OH & Hunting/B-ville, WV
Contact:

Post #7 by crash-harris » Wed Apr 01, 2009 2:23 pm

Powerjunkie, I was thinking exactly the same thing :D
Bruiser - 1990 Ford F150...barely...EFI 300 Big Six, 500K+!, converted to 4x4. 4.10 gears and Sterling FF rear w/ Trac-Lok, 37" meats. Undergoing 1 Ton leaf spring SAS. 6BT in the plans.

Ronbo
Registered User
Posts: 965
Joined: Fri Nov 08, 2002 8:56 am
Location: Sierra Vista, AZ

Post #8 by Ronbo » Wed Apr 01, 2009 4:57 pm

Almost looks like Ponti-rat blue?
2017 F-150 Lariat ECO Boost
2011 F-150 Lariat ECO Boost
68 Mustang, power drums/steering, AC, single outlet coated header, Holley 350, DS II w/Accel super coil
80 Goldwing (half the Mustang :))

User avatar
worken2much
Registered User
Posts: 657
Joined: Sat Jan 31, 2004 9:01 pm

Post #9 by worken2much » Wed Apr 01, 2009 8:48 pm

Thanks for the kind words. The blue is a Nissan color. Very close to the Pontiac engine blue from the 60's. The sidecover is Pioneer brand "as cast gray" from the local engine machine shop. It dries with little gloss. I'll post some additional engine pictures once completed.

My son has recorded our other six cyl. dirt cars for his cell phone ringer. I'll have him record and post a sound clip once we get it fired up.

I'm surprised that there weren't any replies about the pistons. Seems like a fairly regular topic.

I'm told by my machinist friend that the paint scheme is worth at least an additional 20 Hp.

Worken2much

superbepro
Registered User
Posts: 105
Joined: Fri Oct 01, 2004 4:54 pm

Re: engine / piston pics

Post #10 by superbepro » Fri Apr 03, 2009 11:15 am

worken2much wrote:300 with ... ARP head studs & .....


Would the use of ARP head studs be of any consequence in a very mild-performance 300 rebuild - compared to stock head boolts? I am aware that head studs are often used, and recomended for, racing engine applications, but I am curious as to whether they are not so good for a nearly stock engine rebuild - I have heard one comment from a trusted person against their use in this case.

I happen to have a brand new set of ARP head studs and was planning on using them on my rebuild (hyper pistons, CR of 8.7 or less, mild P&P on 300 or 240 head, roller rockers, RV cam, stock 1V carb on rare 1V Edelbrock intake). Just want to know whether or not to use those studs vs re-using the stock head bolts.

Raul
Raul (in DFW area of Texas)
1978 F100, LWB, 2WD, 300inline, close ratio T-19, 9" rear w/2.75:1
1979 F150, SWB, 4WD, 351M, T-18 & NP205, Dana 44 and 9" axles w/3.50:1

User avatar
shortbox07
Registered User
Posts: 300
Joined: Thu Nov 06, 2008 12:10 pm
Location: Indianola, IA
Contact:

Post #11 by shortbox07 » Fri Apr 03, 2009 12:10 pm

the better question is why wouldnt you? nothing wrong with a little over kill. :wink:
A guy at the local parts store once asked me if i own any vehicles that aren't made up of 10 other vehicles ... i replied whats the fun in that!

my "six" collection
78' f-100 shortbox 300
67' mustang coupe 200

User avatar
worken2much
Registered User
Posts: 657
Joined: Sat Jan 31, 2004 9:01 pm

Post #12 by worken2much » Fri Apr 03, 2009 6:25 pm

The ARP stud are made from a harder grade of material. I don't have their information in front of me but I think it is around 180,000 psi steel. Consequently there is less stretch than with the stock head bolts. Little concern at stock compression ratios.

I can see no detrimental side effects from using them in your application. What are the comments you are hearing? Why would they not work....just curious not looking to argue the point.

I have another 300 which is a bit milder than the one discussed in this thread. The compression ratio isn't much different than yours. I re-used the stock head bolts in it and this will be the forth season of racing with it. No troubles and it gets run much harder than a typical street driven 300.

I think you are in that happy position where either choice will work fine.

Worken2much

eeyore
Registered User
Posts: 66
Joined: Sun Jan 15, 2006 9:55 pm
Location: New Berlin, WI

Post #13 by eeyore » Mon Apr 06, 2009 10:49 am

Okay, I'll ask about the pistons. Did you sonic check the block before the .050 overbore? Did you use or consider a partial fill of "Hard Bloc" to help support the walls for the big overbore? Have you run this bore before without problems?

Very nice engine by the way!
Dave

User avatar
ford6man27
Registered User
Posts: 129
Joined: Mon Jan 12, 2004 5:05 pm
Location: Northwest Arkansas

Post #14 by ford6man27 » Mon Apr 06, 2009 3:13 pm

I race a vintage dirt car with a 300. The engine I am running now has been ran for 7 seasons, freshened up 2 times in the 7 years. I am running about 12 1/2 to 1 comp. forged 390 pistons. I will admit that it has a ton of blow by now and I am sure the cylinders are worn out. I don't know if I have just been lucky or not but I feel like I couldn't ask for better service from an engine. I turn this engine 6000 to 6300. Workingtomuch and I usualy race each other at least twice a year,I hope this engine runs as long as mine has even if he out runs me with it. I have a lot of faith in his engine building. I am going to build another one and I will run the 390 pistons and not worry about it.
Andy
Dirt is for racing-Asphalt is for getting there!

eeyore
Registered User
Posts: 66
Joined: Sun Jan 15, 2006 9:55 pm
Location: New Berlin, WI

Post #15 by eeyore » Mon Apr 06, 2009 11:06 pm

Thanks Andy,

Good to know. I always hear that the .050 over is too much for performance use. Sooo maybe not!
Dave

User avatar
ford6man27
Registered User
Posts: 129
Joined: Mon Jan 12, 2004 5:05 pm
Location: Northwest Arkansas

Post #16 by ford6man27 » Tue Apr 07, 2009 10:56 am

I like to kid about who out runs who between working2much and I, but his 16 yr. old son Adam and my 14 yr. old grandson Aaron is who we both need to worry about this racing season. I look for Adam's #00 and Aarons #53 to be the ones to beat this yr.
Andy
Dirt is for racing-Asphalt is for getting there!

User avatar
THE FRENCHTOWN FLYER
VIP Member
Posts: 6088
Joined: Sat Nov 09, 2002 9:25 pm
Location: FRENCHTOWN

Post #17 by THE FRENCHTOWN FLYER » Tue Apr 07, 2009 11:00 pm

ford6man27 wrote:I like to kid about who out runs who between working2much and I, but his 16 yr. old son Adam and my 14 yr. old grandson Aaron is who we both need to worry about this racing season. I look for Adam's #00 and Aarons #53 to be the ones to beat this yr.
Andy


Aw man! Don't tease us like that. Put up some pictures and specs.
FORD 300 INLINE SIX - THE BEST KEPT SECRET IN DRAG RACING

User avatar
worken2much
Registered User
Posts: 657
Joined: Sat Jan 31, 2004 9:01 pm

Post #18 by worken2much » Wed Apr 08, 2009 6:11 pm

Here is the 00. 1929 Chevy sedan with 250 Chevy six power. No specs on engine internals. We bought this one. Compression has been bumped, aluminum intake, headers and a nice rumpy cam. Really winds up. May get a Ford 300 next winter. We will see......

Worken2much
[img][img]http://i570.photobucket.com/albums/ss150/Big1vintage/022.jpg[/img][/img]

User avatar
ford6man27
Registered User
Posts: 129
Joined: Mon Jan 12, 2004 5:05 pm
Location: Northwest Arkansas

Post #19 by ford6man27 » Wed Apr 08, 2009 8:43 pm

When we built Aaron's car we have tried our best to make a good ch--y. The car is a 34 ch--y coupe but we improved it with a 240 ford six. It has a comp.cam 515 lift 290 dur. ross pistons, Offy intake, 194 160 valves,
lightened and knife edged crank and a few other goodies. It has a top loader 3 speed with a jeep T150 top and shifter and a Franklin quick change. The car is in the paint shop now.I will post pics. as soon as we get it painted and lettered.
Andy
Dirt is for racing-Asphalt is for getting there!

Thad
FSP Moderator
Posts: 1636
Joined: Thu Nov 07, 2002 11:56 pm
Location: Vinton, La / Orange,Tex --- Hurricane Alley

Post #20 by Thad » Wed Apr 08, 2009 10:35 pm

Andy,
do you have a pic of the knife edged crank?
There are those who just dream,

and there are those who do more than dream. ><> = +

User avatar
ford6man27
Registered User
Posts: 129
Joined: Mon Jan 12, 2004 5:05 pm
Location: Northwest Arkansas

Post #21 by ford6man27 » Thu Apr 09, 2009 9:23 am

No I didn't take any pics, probably should have. I bought this engine used about 6 yrs ago. I pulled the pan and checked the bearings,which were like new. The engine was suposedly been freshened just before I bought it and it looked like it was. I ran this engine one time last fall at the Cornhusker nationals. It has about the same power as my 300, just at a different RPM.power band very different. The crank has the counter weights narrowed at the base and tapered down to about 1/4 of an inch at the outside. The work looks pretty rough like it was done with a grinder. The surface is about as rough as the stock casting. In other words it is not polished. It seems to be balanced OK Winds up very quick and no vibration. The engine was said to have ran in an old late model back east somewhere. It came with a clifford valve cover and a, I think kinda rare,
Precision Engine Service aluminum side cover. We are going to try it. If it blows up we will have the pan off pretty soon other wise it may be a while before I can get some pics.
Andy
Dirt is for racing-Asphalt is for getting there!

User avatar
THE FRENCHTOWN FLYER
VIP Member
Posts: 6088
Joined: Sat Nov 09, 2002 9:25 pm
Location: FRENCHTOWN

Post #22 by THE FRENCHTOWN FLYER » Thu Apr 09, 2009 10:57 am

Bravo! Absolutely superb!
FORD 300 INLINE SIX - THE BEST KEPT SECRET IN DRAG RACING

User avatar
rhetor
Registered User
Posts: 794
Joined: Mon Aug 04, 2003 9:05 pm

Post #23 by rhetor » Thu Apr 09, 2009 11:30 am

Those race cars are the coolest!

Love the style.
300- mild head porting - 204/214 cam - 1.73 rollers - 2.5" exhaust DEAD AND GONE!

New truck- 71 F-100 302/AOD. Missing my 300 dearly. 302 belongs in a mustang, lifters tick, headers sound annoying, vibrates, is ugly, etc.

American Thunder
Registered User
Posts: 336
Joined: Sun Feb 17, 2008 3:35 pm
Location: Upstate, NY

Post #24 by American Thunder » Thu Apr 09, 2009 12:05 pm

They do look awesome
1977 530hp 302 Mustang II videos:
Smokeshow at 8000 rpm
0-90 mph speedometer view

1983 4x4 Bronco - '95 300 converted to carb, 5-speed, 3.55 gears and 9" rear.

eeyore
Registered User
Posts: 66
Joined: Sun Jan 15, 2006 9:55 pm
Location: New Berlin, WI

Post #25 by eeyore » Fri Apr 10, 2009 9:59 am

Nice cars, almost too pretty to race! You guys do a nice job.
Dave
