Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #1 by old28racer » Thu Jul 02, 2020 12:25 am

Trying to figure out what bolt pattern is that is drilled & taped into top of a Clifford 43-4502 240/300 inline 6 open chamber 4V intake manifold. I know that the holes are to bolt the carb adapter of choose on to. I have a used intake from a buddy on it's way but I would like to know what the bolt pattern spacing is, any one out there know? Thanks for looking.
Bad Day Racing Is Better Than A Day In The Stands :mrgreen:

1986F150six
Registered User
Posts: 373
Joined: Wed Oct 24, 2012 3:11 pm
Location: Northwest Alabama

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #2 by 1986F150six » Thu Jul 02, 2020 9:31 am

I did a search and found this on the H,A.M.B. site. Hope it is useful.

Gearheads,

I recently bought a clifford intake for my 235 engine, I also bought a used holley 390 carb. What kind of adapter do I have to use ....

Sent from my GT-I9195I using The H.A.M.B. mobile app

68caddydaddy, Oct 4, 2016
SHARE POST#1



saltflats
Member
from Missouri

What is the flange pattern on the intake?


68caddydaddy
Member
from The Netherlands

saltflats said: ↑
What is the flange pattern on the intake?
About 3.85" x 3.77" (98x96 mm)

Sent from my GT-I9195I using The H.A.M.B. mobile app

CNC-Dude
Registered User
Posts: 1545
Joined: Wed Nov 19, 2008 6:06 pm
Location: N. Ga.
Contact:

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #3 by CNC-Dude » Thu Jul 02, 2020 10:19 am

Some were originally made to fit the early WCF style carbs. They were smaller CFM's and ideal for inline engines.

User avatar
bubba22349
Global Moderator
Posts: 10358
Joined: Sun Jan 03, 2010 4:46 pm
Location: Flagstaff, Az. 86005 near the old Route 66

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #4 by bubba22349 » Thu Jul 02, 2020 11:29 am

Clifford intakes used their own proprietary design / spacing so that only their carb adapters would fit them, though it wouldn't be that hard to make your own adapter plate. :thumbup: :nod:
Even a bad day Drag Racing is still better than a good day at work!

Current project is a 1988 John Deere 420 Garden Tractor I need a few small parts to get it fixed, plus some cosmetic items, maybe a few attachments, if you happen to have or know of JD 420 parts would welcome the help!

My Ex-Inline 6 Fleet 1954 Customline 223 3 speed with O/D, 1963 Fairlane project drag car with BB6, 1977 Maverick 250 with C4, 1994 F-150 a 300 with 5 speed.

BigBlue94
Registered User
Posts: 610
Joined: Wed Mar 07, 2018 6:38 pm
Location: Hoyt, Kansas

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #5 by BigBlue94 » Thu Jul 02, 2020 7:00 pm

3&13/16" by 3&13/16" on centers

Hole is 3.5" square, with about 1/2" radii in the corners

Taken from an old paper gasket i made for my clifford, water heated, single "4bbl" open plenum manifold.
1985 Bronco. 309ci I6, NP435, 4.56 gears, Detroit locker and tru-trac, 4" lift, and 37" swamper tires. The 309 is 9.75:1 CR with a Schneider 140H cam, 4bbl, roller rockers, larger valves, and headers.

User avatar
THE FRENCHTOWN FLYER
VIP Member
Posts: 6582
Joined: Sat Nov 09, 2002 9:25 pm
Location: FRENCHTOWN

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #6 by THE FRENCHTOWN FLYER » Thu Jul 02, 2020 10:28 pm

I have a couple of open carb adapters that look like Clifford - but they do not align by about 1/8". I think if I ever need them I'll mill them to fit. crazy
Last edited by THE FRENCHTOWN FLYER on Fri Jul 03, 2020 7:01 am, edited 2 times in total.
FORD 300 INLINE SIX - THE BEST KEPT SECRET IN DRAG RACING

User avatar
old28racer
Registered User
Posts: 823
Joined: Wed Apr 12, 2017 3:27 pm
Location: Camarillo, CA

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #7 by old28racer » Thu Jul 02, 2020 11:15 pm

I was finally able to get ahold Of Clifford Performance today. Tec guy said the bolt pattern in the intake is square 3 7/8" x 3 7/8". Will only fit their adapters. At $58 for one of their 4x2 adapters I think I will get another pc aluminum plate & build one.
Bad Day Racing Is Better Than A Day In The Stands :mrgreen:

User avatar
THE FRENCHTOWN FLYER
VIP Member
Posts: 6582
Joined: Sat Nov 09, 2002 9:25 pm
Location: FRENCHTOWN

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #8 by THE FRENCHTOWN FLYER » Fri Jul 03, 2020 7:03 am

For a quick-n-dirty trial don't rule out the possibility of making one out of hardwood. It works for a test stand or a drag car, or even to try out a combo on a street ride, short term.
FORD 300 INLINE SIX - THE BEST KEPT SECRET IN DRAG RACING

BigBlue94
Registered User
Posts: 610
Joined: Wed Mar 07, 2018 6:38 pm
Location: Hoyt, Kansas

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #9 by BigBlue94 » Fri Jul 03, 2020 11:23 am

old28racer wrote:I was finally able to get ahold Of Clifford Performance today. Tec guy said the bolt pattern in the intake is square 3 7/8" x 3 7/8". Will only fit their adapters. At $58 for one of their 4x2 adapters I think I will get another pc aluminum plate & build one.


Their adapters are nice. At least the one i have is. But yeah, bit on the pricey side.

The mounting pad before the adapter is rather small compared to a normal 4bbl manifold. I was using paper gaskets, but have since tried black RTV. We'll see how it holds up.


1985 Bronco. 309ci I6, NP435, 4.56 gears, Detroit locker and tru-trac, 4" lift, and 37" swamper tires. The 309 is 9.75:1 CR with a Schneider 140H cam, 4bbl, roller rockers, larger valves, and headers.

User avatar
old28racer
Registered User
Posts: 823
Joined: Wed Apr 12, 2017 3:27 pm
Location: Camarillo, CA

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #10 by old28racer » Fri Jul 03, 2020 2:33 pm

FTF -- Ya a Pc hardwood would be a lot easier to mill just so I could test run it.

BigBlue94 -- I agree that their 4x2 adapter is a real nice, well make unit. I OK with building another aluminum adapter like I just finished, only takes time and I've got lots of that.
Bad Day Racing Is Better Than A Day In The Stands :mrgreen:

Firepower354
Registered User
Posts: 279
Joined: Sun Jun 19, 2011 10:35 pm
Location: Flint, MI
Contact:

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #11 by Firepower354 » Sat Jul 04, 2020 6:22 pm

BigBlue94 wrote:
old28racer wrote:I was finally able to get ahold Of Clifford Performance today. Tec guy said the bolt pattern in the intake is square 3 7/8" x 3 7/8". Will only fit their adapters. At $58 for one of their 4x2 adapters I think I will get another pc aluminum plate & build one.


Their adapters are nice. At least the one i have is. But yeah, bit on the pricey side.

The mounting pad before the adapter is rather small compared to a normal 4bbl manifold. I was using paper gaskets, but have since tried black RTV. We'll see how it holds up.





Threebond 1184, the current superseded number, is what I use on all my 2 stroke cases. They get heat, vibration, pos/neg pressure pulsing, gas and oil, and I've never had a leaker. It's thinner than the old stuff with asbestos, so I use flux brushes to apply. Stays a little flexible. Whetstone is the perfect prep, IMO
It gets 10MPG, but goes up to 14 if I lie.

User avatar
bubba22349
Global Moderator
Posts: 10358
Joined: Sun Jan 03, 2010 4:46 pm
Location: Flagstaff, Az. 86005 near the old Route 66

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #12 by bubba22349 » Sat Jul 04, 2020 7:41 pm

:hmmm: In using an RTV on an intake around fuel my experance has been that it doesn't work for very long. I have been using Permatex non hardening for many years. :nod:
Even a bad day Drag Racing is still better than a good day at work!

Current project is a 1988 John Deere 420 Garden Tractor I need a few small parts to get it fixed, plus some cosmetic items, maybe a few attachments, if you happen to have or know of JD 420 parts would welcome the help!

My Ex-Inline 6 Fleet 1954 Customline 223 3 speed with O/D, 1963 Fairlane project drag car with BB6, 1977 Maverick 250 with C4, 1994 F-150 a 300 with 5 speed.

BigBlue94
Registered User
Posts: 610
Joined: Wed Mar 07, 2018 6:38 pm
Location: Hoyt, Kansas

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #13 by BigBlue94 » Sun Jul 05, 2020 3:05 pm

I should probably just cut out another paper gasket then. That seemed to work fine.
1985 Bronco. 309ci I6, NP435, 4.56 gears, Detroit locker and tru-trac, 4" lift, and 37" swamper tires. The 309 is 9.75:1 CR with a Schneider 140H cam, 4bbl, roller rockers, larger valves, and headers.

User avatar
bubba22349
Global Moderator
Posts: 10358
Joined: Sun Jan 03, 2010 4:46 pm
Location: Flagstaff, Az. 86005 near the old Route 66

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #14 by bubba22349 » Sun Jul 05, 2020 3:38 pm

Yes if the surfaces are nice an flat / true a good paper gasket is all you really need. :thumbup: :nod:
Even a bad day Drag Racing is still better than a good day at work!

Current project is a 1988 John Deere 420 Garden Tractor I need a few small parts to get it fixed, plus some cosmetic items, maybe a few attachments, if you happen to have or know of JD 420 parts would welcome the help!

My Ex-Inline 6 Fleet 1954 Customline 223 3 speed with O/D, 1963 Fairlane project drag car with BB6, 1977 Maverick 250 with C4, 1994 F-150 a 300 with 5 speed.

1986F150six
Registered User
Posts: 373
Joined: Wed Oct 24, 2012 3:11 pm
Location: Northwest Alabama

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #15 by 1986F150six » Tue Jul 07, 2020 11:20 am

old28racer wrote:FTF -- Ya a Pc hardwood would be a lot easier to mill just so I could test run it.

BigBlue94 -- I agree that their 4x2 adapter is a real nice, well make unit. I OK with building another aluminum adapter like I just finished, only takes time and I've got lots of that.


Last night, I dug into my storage area to retrieve the NOS Clifford 2 X 4 intake manifold with two adapter plates for Motorcraft two barrel carburetors.

The adapter plate is identified as CLIFFORD A-0452

On the outer edges of the plate, with the CLIFFORD and A-0452 facing up, there are four slots which are for the mounting studs and nuts [which attach the plate to the intake manifold]. These slots are angled. Center to center of the long side of the rectangle, the measurement is 3 13/16". Center to center on the short side of the rectangle is 3 3/4". If measured as an "X", the center to center distance is 5 3/8".

There are eight threaded holes.

The outer most set, located on the "ears" of the adapter, measure 6 1/4" [center to center] as on an "X". The same set of threaded holes measures 3 1/2" [center to center] on the short side of the rectangle. On the long side of the rectangle, the outer threaded holes measure 5 3/16" [center to center].

The inner most set of threaded holes, measures 4 3/16" [center to center] as on an "X". The same set of threaded holes measures 1 13/16" [center to center] on the short side of the rectangle. On the long side of the rectangle, these inner threaded holes measure 3 5/8" [center to center].

Disclaimer: I am not a machinist, so the measurements are close, but not absolute. :wink:

If there is a particular question, please ask and I will try to find the answer.
Last edited by 1986F150six on Tue Jul 07, 2020 11:44 am, edited 1 time in total.

User avatar
old28racer
Registered User
Posts: 823
Joined: Wed Apr 12, 2017 3:27 pm
Location: Camarillo, CA

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #16 by old28racer » Tue Jul 14, 2020 9:56 pm

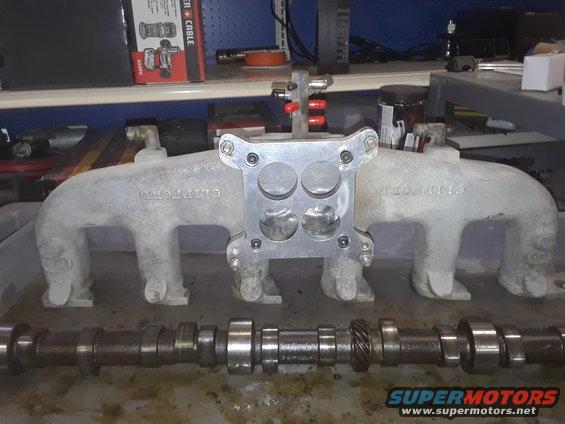

Thanks to all for the help. I got the Clifford 4V intake my buddy passed forward to me along with the Clifford adapter. I installed a Mr Gasket 4x2 carb adapter that will except both my Holley 2300 & Autolite 2100 carbs. This setup will be mounted on my 1971 F250 300 4.9L motor. Will try both carbs & get AFR baselines for each. Pictures are of intake mounted on another 300 I am building.
Bad Day Racing Is Better Than A Day In The Stands :mrgreen:

1986F150six
Registered User
Posts: 373
Joined: Wed Oct 24, 2012 3:11 pm
Location: Northwest Alabama

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #17 by 1986F150six » Wed Jul 15, 2020 2:11 pm

Looks nice! :thumbup:

User avatar
old28racer
Registered User
Posts: 823
Joined: Wed Apr 12, 2017 3:27 pm
Location: Camarillo, CA

Re: Clifford 43-4502 4V 240/300 Intake Bolt Pattern ??????

Post #18 by old28racer » Wed Jul 15, 2020 7:38 pm

Thanks David, I hope it works better than my current 1x2 adapter setup on my F250 300 with my Holley 2300 2bbl carb. Will see what my new AFR baseline is.
Bad Day Racing Is Better Than A Day In The Stands :mrgreen:
