oem C4 / throttle linkage plate assmbly ; oem Engine Lift straps

Post #1 by chad » Tue Apr 02, 2019 1:33 pm

1st is a couppla plates (pivot pin between), a bracket w/a bent rod threaded thru, bolted to back of the log and up on carb.

2nd is just the frnt/rear 2 metal eyed straps to do an engine instal/removal. Curiously enuff some of the above is bolted to the same place on the log/exh manuel.

Use below personal e-mail if U would plez (or let's go to it after).
Thank you...
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
xctasy
VIP Member
Posts: 6666
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: oem C4 / throttle linkage plate assmbly ; oem Engine Lift straps

Post #2 by xctasy » Tue Apr 09, 2019 11:19 am

chad wrote:1st is a couppla plates (pivot pin between), a bracket w/a bent rod threaded thru, bolted to back of the log and up on carb.

2nd is just the frnt/rear 2 metal eyed straps to do an engine instal/removal. Curiously enuff some of the above is bolted to the same place on the log/exh manuel.

Use below personal e-mail if U would plez (or let's go to it after).
Thank you...


This

https://fordsix.com/viewtopic.php?f=1&t ... 02#p592202
Stormin' Norman wrote:....



........
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

User avatar
chad
Registered User
Posts: 4476
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

1) oem C4 / throttle linkage plate assmbly ; 2) oem Engine Lift straps

Post #3 by chad » Tue Apr 09, 2019 6:00 pm

I remember he said he drug dat thing all the way from Meheho up to Canerder. Fairmonts! (glad its a waggy)

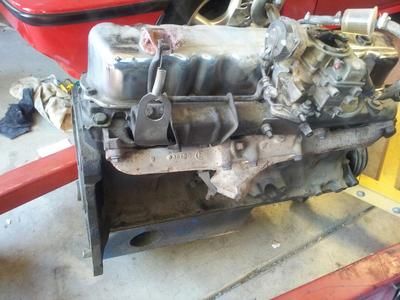

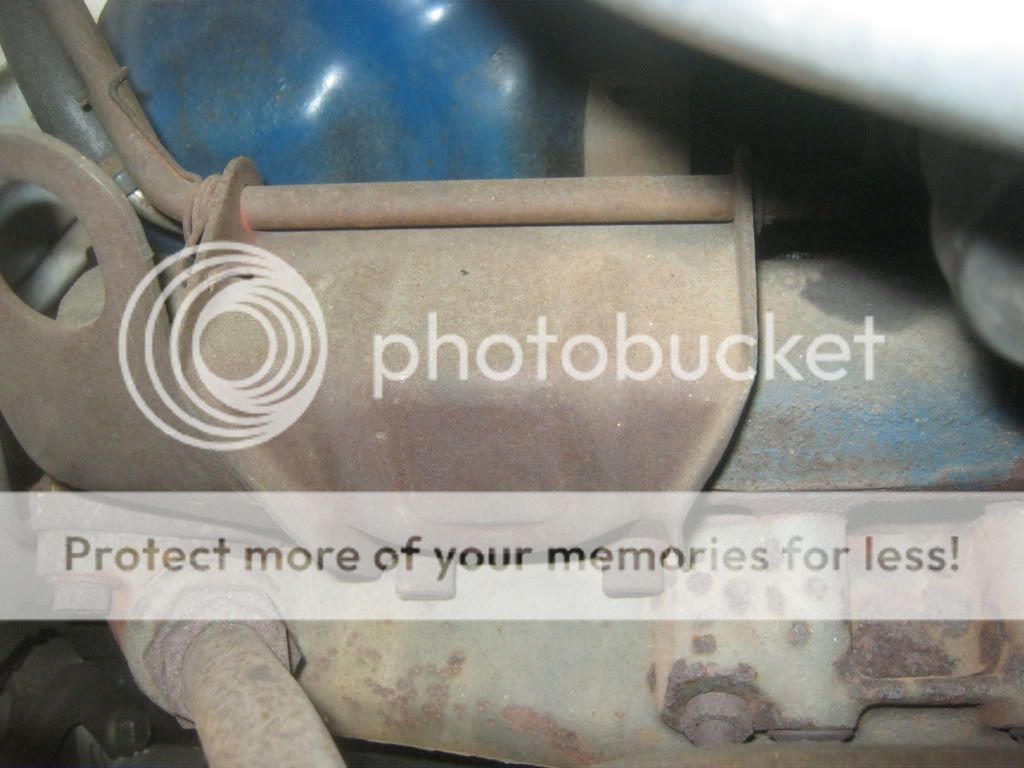

I C the lift strap'n (rear) rear plate/linkage rod.
Ur other pic (3 or 4 series - dissasembled) R even better than these.

Got a name 4 these prts? Any numbers? I can't really search (easily) w/o them...
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
xctasy
VIP Member
Posts: 6666
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: oem C4 / throttle linkage plate assmbly ; oem Engine Lift straps

Post #4 by xctasy » Sun Apr 14, 2019 6:51 am

No numbers on them easily seen.

There is a BPN in the 9000 series that Ford has used in a 1979 Fox diagram from the Capri/Mustang/Fairmont/Zephyr Service manual. IMHO, in my experience, that doesn't help. When checking the SROD part numbers for the 1979 2.8 Mustang at Four Eyed Pride we found them on the 1979 Ford Service Manual in the transmission and gearbox part number section. 82GTforME posted them in the Tangerine Mustang 2.8 Coupe rebuild. Im on my cell phone, and this forum has locked me out of my laptop excess, so I cannot easily copy the link.

Everything has a Basic Part Number, but the numbers are unable to be seen easily.
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

User avatar
chad
Registered User
Posts: 4476
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

oem C4 / throttle linkage plate assmbly ; oem Engine Lift straps

Post #5 by chad » Sun Apr 14, 2019 9:26 pm

that's pretty interesting as its much later than I thought ('79''n a 2.8 too).
I C the 'plate' one (rear of log, same bolts as rear pass side lift eye) - much more than the 'linage' one (not sure I ever saw it till U posted pic).
Yeah, obviously anything any one can do is appreciated.
--------------------
How bout 'lift eyes"? An actual prt or a CAD, some other way to take of measurements to a 1/4 plate...
I think plasma cutter'od B a nice way to produce. My torch wrk don't look so nice now I'm done :nono:
Gunna take as much hand wrk as my port divider did ! :roll:
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
xctasy
VIP Member
Posts: 6666
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: oem C4 / throttle linkage plate assmbly ; oem Engine Lift straps

Post #6 by xctasy » Wed Apr 17, 2019 2:26 pm

1bad6t and 82GTforME have listed the 1973-1979 Ford Part manual.

This is not the post, but an example of the extensive factory drawings, and the part numbers.

If you search Stormin'Norman's and 1bad6tposts, the document reference is there under the EVTM and VECI details.

You have to do the leg work on this my friend, but there is a downshift linkage picture with 9000 series BPN's in it, and the hoist brackets are included too. It was the same part from 1969- 1983.

Example FYI:


FoMoCo parts manual disc for 73-79 cars

''78 and '79 "External Parts: clutch, clutch and brake pedal"

82GTforME wrote:From what I can decipher out of the maze in the parts manual. Confusing to find things when there are 4-speed "Ford style", 4-speed "German Style", SR4 (RAD) and SROD all in there. Also from what I could see was the 3-speed was available on the 73-77 Bronco/Maverick/Torino, 75-78 Granada and 78 Fairmonts :noesrun:

(PS: my parts manual disc is for 73-79 cars so I cannot say if these were used in later years)

75-78 Fairmont/Granada and 79 Granada w/302: D5DZ 6392-A
79 Mustang/Fairmont w/302: D9ZZ 6392-C


Oh, and the bell I would like for the 79 2.8 is a one year only.
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

User avatar
chad
Registered User
Posts: 4476
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

oem C4 / throttle linkage & seperte plate assmbly ; oem Engine Lift straps

Post #7 by chad » Wed Apr 17, 2019 4:49 pm

xctasy wrote:1bad6t and 82GTforME have listed the 1973-1979 Ford Part manual....
If you search Stormin'Norman's and 1bad6tposts, the document reference is there under the EVTM and VECI details.

You have to do the leg work on this my friend, but there is a downshift linkage picture with 9000 series BPN's in it, and the hoist brackets are included too. It was the same part from 1969- 1983.

(PS: my parts manual disc is for 73-79 cars so I cannot say if these were used in later years)

OK, nuttin wrong wid dat!
I will follow up (if responses, joy joy...
Our boy Stormin & 1bad6t right here, 82GTforme (at foureyed pride?) but what/where is "9000 series BPN"?
And that the lift eyes were on our USA rigs "sm block i6" '69 - '83, boy every I know (cept powerband) musta thrown em away...

I'll keep goin w/thanks to U Dean!
:nod:
:thumbup:
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", tool boxes, etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
xctasy
VIP Member
Posts: 6666
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: oem C4 / throttle linkage plate assmbly ; oem Engine Lift straps

Post #8 by xctasy » Sat Apr 20, 2019 8:15 pm

I'm certain there are high resolution pictures of bracket BPN 9728.

Just can't find em.

1969-1983 200/3.3 or 1969-1980 250/4.1 is whacha whacha whachawant...

Every C9 onwards head till E0 had the two bolt hole boss cast into the back part of the head, some early ones weren't drilled.





from http://www.fomoco.org/tech-tips/how-to- ... t-numbers/


BPN
9500-9599 is the Carburetor
9700-9999 = Accelerator and choke control rods




As of the advent of the C5 and AOD, it went to a cable linkage on the YFA Big Sixes, but the er 1969-1970-1/2 Falcon, 69-73 250 Mustang, 69-77 Comete/Maverick/1975-1983 Granada/1975-1980 Monarch/1979-1982 Mustang/Capri/ 1978-1983 Fairmont/Zephyr all used a rod oprated version.

The internal BPN number will most likely be #9728

the 6 cylinder 240/300 F-Truck and E-Van system.

It should be under the Ford Six Performace old Classic in lines tech articles


Its not under 1bad6t.coms 170/200/250 69-77 Maverick rod operated kickdown linkages.

They were under this link


03-12-2012, 03:26 PM #1 by pd59

https://www.ford-trucks.com/forums/1146 ... s-etc.html

Both the Big Six and Small six rod operated kickdown bracket were similar, but not 100% the same.


The #9728 C4 and C5 kickdown rod bracket on the 1978 to 1985 non feedback carb F100/150'S has a similar musroom on the rod as the stock Small Six 1969-1983 rod operated kickdown.

Gary's Garagemahal (the Bullnose bible) is still active.

http://www.garysgaragemahal.com/kickdown-linkage.html

7A185 Rod operated for Duraspark equiped Feedback MCU and non feedback non computerised 4.9 liter truck and Van YFA Carter

for FMX/C6/C5/C4 on the 4.9 big six.

"http://www.garysgaragemahal.com/uploads/6/5/8/7/65879365/300-six-linkage-illustration_orig.jpg"

The 1983-1986 cable operated bracket is #9728, and near the 57632-S (U-10-A) picture for later TFi equiped EECOV 4.9 liter truck and Van YFA Carter, for AOD 4speed autos.

"http://www.garysgaragemahal.com/uploads/6/5/8/7/65879365/aot-300-six-linkage_orig.jpg"
