Who has an I6 Fox Body?

Post #1 by xafalcongs » Tue Dec 11, 2007 11:59 pm

Who all on here have either a Mustang or Capri with the factory 6? I was given, yep, given a 3.8 powered 1986 Capri GS. The car is in pretty good shape. It needs a respray and the motor/tranny are both shot. I have an I6 K-member and recently picked up some more Aussie X-flows to replace the one I sold. So, who else has a 6 powered Fox body?

User avatar
addo
VIP Member
Posts: 10611
Joined: Fri Nov 08, 2002 3:06 am
Location: Sydney, Australia

Post #2 by addo » Wed Dec 12, 2007 12:16 am

Did your mate get you any Cortina oil pans? Pretty sure that's what you'll need to make it work.

User avatar
JackFish
VIP Member
Posts: 2789
Joined: Thu May 26, 2005 7:31 pm
Location: Winnipeg Manitoba Canada

Post #3 by JackFish » Wed Dec 12, 2007 1:43 am

I do, I do!! :lol:
In fact, I believe the '78 Fairmont was the first Fox-body Ford.
I like to think of my car as the Mustang-station-wagon-with-the-little-truck-motor-that-never-was! :D
1978 Ford Fairmont station wagon
1978 Ford Fairmont station wagon
Yup, I bought another one.
1996 Chevy Caprice 9C1 (3)
1999 Dodge Ram 2500

xafalcongs
Registered User
Posts: 56
Joined: Tue Dec 23, 2003 5:05 pm
Location: Ex-FLA, now some mid-west corn field

Post #4 by xafalcongs » Wed Dec 12, 2007 2:00 am

addo wrote:Did your mate get you any Cortina oil pans? Pretty sure that's what you'll need to make it work.
Nah, no Cortina pans. I was planning on modding the pans anyway.

SteveS
Registered User
Posts: 141
Joined: Fri Nov 08, 2002 6:50 am
Location: Ridgecrest, Ca.

Post #5 by SteveS » Wed Dec 12, 2007 10:02 am

I do. 1982 Cougar.
Sign of the Cat
1982 Mercury Cougar GS station wagon

User avatar
80Stang
Registered User
Posts: 436
Joined: Wed Mar 19, 2003 3:44 pm
Location: Finland
Contact:

Post #6 by 80Stang » Thu Dec 13, 2007 12:09 am

Yep, here is a '80 Mustang with matching numbers 200cid engine.

User avatar
Marine05
Registered User
Posts: 84
Joined: Fri Oct 20, 2006 2:19 pm
Location: Beaver Falls, Pa

Post #7 by Marine05 » Thu Dec 20, 2007 8:59 pm

81 foxbody with 200 Inline and c4 tranny. All matching.

BKNLINE
Registered User
Posts: 167
Joined: Wed Jan 08, 2003 3:17 am
Location: Southern Cal
Contact:

Post #8 by BKNLINE » Mon Dec 24, 2007 2:34 am

I have the last model of the first Fox chassis Fords: an '83 Fairmont 2 door Sedan. It will be converted to a V8 since California frowns on an aluminum head 200 I6 without the emissions equiment. A '65 Mustang however, isn't scrutinized too much.

Dean T
My first 'Stang was an I6 '65 FB but sold it when I bought a V8 version.
I've been a V8 person ever since until now: I just bought a '65 200 I6 Mustang Coupe.

So now, I'm Back Inline!

Snake

Post #9 by Snake » Mon Jan 21, 2008 6:50 pm

Marine05 wrote:81 foxbody with 200 Inline and c4 tranny. All matching.


X 2 and just turned over 100,000 kilometers first time around,no bull.
See Sig :D

max
Registered User
Posts: 35
Joined: Sun Dec 02, 2007 7:59 pm
Location: Victoria, B.C.

Post #10 by max » Wed Jan 23, 2008 12:37 am

Hi, I have 3 Foxes, all inline 200's with automatics.
A copper 79 hatchback with about a 120,000 miles, painted and put in the ditch by my son(':oops:')
Tweaked the frame a bit, but it is fixable.
A black 79 hatchback with about 60,000 miles, which for some reason(':roll:')
I am letting him drive to college.
My 80 sedan, with a white vinyl, yes vinyl roof, about 70,000 miles.
One of these will be getting a 2 barrel carb this spring, and maybe headers('8)')

Which reminds me, I may be getting a used set of Hookers, dual outlet. They were on an older Mustang. Anyone else have headers on their Fox? Any advice?

GrantD
Registered User
Posts: 82
Joined: Thu May 18, 2006 5:59 pm
Location: Mankato, MN
Contact:

Post #11 by GrantD » Tue Feb 26, 2008 7:03 pm

I've got an 80' mustang...I love the thing. It's pushing 95,000 miles.

BUZZ
Registered User
Posts: 408
Joined: Wed Aug 01, 2007 10:49 pm
Location: Hazlehurst, Mississippi

Post #12 by BUZZ » Sun Mar 30, 2008 10:28 pm

I have an 81' Capri :D

JT81stang
Registered User
Posts: 96
Joined: Fri Nov 08, 2002 7:12 am
Location: Ontario, Canada

Post #13 by JT81stang » Tue Apr 01, 2008 7:05 am

Here's my 81 Stang.
The original 200 motor is long gone, replaced with a 250 motor.
Still has original C-4 tranny and 3:27 gears in the 7.5 rear.

Mean buzzin' half dozen

User avatar
JackFish
VIP Member
Posts: 2789
Joined: Thu May 26, 2005 7:31 pm
Location: Winnipeg Manitoba Canada

Post #14 by JackFish » Tue Apr 01, 2008 10:10 am

Did you fab up the oil pan to put a 250 in there?
1978 Ford Fairmont station wagon
1978 Ford Fairmont station wagon
Yup, I bought another one.
1996 Chevy Caprice 9C1 (3)
1999 Dodge Ram 2500

JT81stang
Registered User
Posts: 96
Joined: Fri Nov 08, 2002 7:12 am
Location: Ontario, Canada

Post #15 by JT81stang » Tue Apr 01, 2008 1:10 pm

Yes I did, Jackfish.
I used the lower half of the original 200 pan and the upper half (including where the front & rear main seals go) from a 250 pan.

I screwed the upper half to a piece of plywood to minimize warpage when welding the two pieces together.

As for a dipstick tube - it went into the drivers side of the pan just below the mounting flange.
Mean buzzin' half dozen

BUZZ
Registered User
Posts: 408
Joined: Wed Aug 01, 2007 10:49 pm
Location: Hazlehurst, Mississippi

Post #16 by BUZZ » Tue Apr 01, 2008 1:19 pm

What else did you have to do to get your 250 in there?

JT81stang
Registered User
Posts: 96
Joined: Fri Nov 08, 2002 7:12 am
Location: Ontario, Canada

Post #17 by JT81stang » Wed Apr 02, 2008 7:08 am

I used 1971 Maverick 250 motor mounts which lower the motor in the engine compartment. You can use the original 200 mounts but the 250 will sit higher and you will need a big scoop on the hood.

Even with the Maverick mounts you still need a hood scoop. See the photo of my car and you'll see I used a newer Stang front facing scoop on mine & yes, it is functional.

You will also need to use an older power steering pump and bracket - one from a Granada will work. The orginal power steering bracket will not fit the 250 motor, and the original pump will not fit the older bracket - or you can ditch the pump and bracket all together by getting a manual rack & pinion setup.

If you have a C-4 behind the original 200 it can still be used but you will need to change the bellhousing as the 250 has the same bolt pattern as a V-8.

Original starter will still work as will the ugly exhaust manifold - but I have a Clifford 6 into 1 header on mine.

One last thing - the original 4 blade plastic fan will work but is very close to the underside of the hood. I went with a slightly smaller dia. fan.

John.
Mean buzzin' half dozen

User avatar
xctasy
VIP Member
Posts: 6885
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: Who has an I6 Fox Body?

Post #18 by xctasy » Thu Jan 13, 2011 8:58 pm

I've been blessed with a totally stock 1982 B-code Mustang, has optional 3.3L 87hp 6-cyl with its 1-bbl Holley carb,



That's the sky blue high mount starter engine 3.3, Bordeaux C3 auto, 2.79 gears, small TRX P190/65 390 tire package. It's still LHD, and quite unlike the United Kingdom RHD conversions which had TUV/Type Aprroval Capri 2800 tail lights and reversed firewall, but it does have the specially cast pods for British/German spec Ford Granada MkII fold back mirrors and the metric speedo.

It's a 1983 rego year Japanese market export, Canadian full metric speedo with 57300 kilometers (35 590 original miles), stock California emission spec, heavy duty battery, tilt wheel, intermediate wipe, A/C.P/S

Others with the C4 are mostly low mount,

Mine is high mount starter
[img]http://i1215.photobucket.com/albums/cc501/xecute6/DSC10246-114E1BE6015FABLOCKNOTBB138toothODabout11_3C379_81.jpg][/img]

Its magic on the road, has a peachy smooooth engine which mates gracefully with the smoooth French transmission. Its got a great ride and suspension and steering and brakes and general feel of the car are light years ahead of the 1982 Falcon. Performance is slow as the 1982 B code lost 7 hp over the 1981 versions but it keeps up with modern traffic. Same year Aussie Falcon 3.3 had 120 hp and weighed in at about 2919, not 2622 pounds. It did 18.5 seconds as a 3speed auto and 17.9 seconds as a 5-speed manual for 111 mph, but my Mustang auto takes about 20 seconds. The rare Californian spec RS Capri 3.3-speed SROD with 2.49 diff and 97.5 hp 2-bbl Holley Weber took 19 seconds to cross the 1/4 mile, and couldn't break 90 mph!







As for fitting a 250 engine, the Aussie block is smaller, and about 1.5"narrower than the US 250. Here is a copy from Jack Collins whos mates fitted up a triple carb, dual header US 250 to a Fox Mustang



Last edited by xctasy on Sun Mar 26, 2017 9:38 am, edited 9 times in total.
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

User avatar
JackFish
VIP Member
Posts: 2789
Joined: Thu May 26, 2005 7:31 pm
Location: Winnipeg Manitoba Canada

Re: Who has an I6 Fox Body?

Post #19 by JackFish » Thu Jan 13, 2011 10:26 pm

Congrats, looks like it's in great shape.
Nice custom fox-body oil pan on the 250.
1978 Ford Fairmont station wagon
1978 Ford Fairmont station wagon
Yup, I bought another one.
1996 Chevy Caprice 9C1 (3)
1999 Dodge Ram 2500

User avatar
powerband
FSP Moderator
Posts: 1970
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Who has an I6 Fox Body?

Post #20 by powerband » Fri Jan 14, 2011 10:05 am

I've long been looking for Fox L6 Mustang . I'm fairly convinced they were regional or DSO selective. Very few are found (or left :? ) in the N.E. . Limiting my projects to feasible, a Foxbody "later" evolution suspension and tricked small block six/T5 would complete Falcon lineage for me. (Tbird SC for purists).

They don't turn up on regional Craigs/E-Bay . 'Been looking for an original six or junk V8 conversion with clutch pedals.

Have Fun
"Take time to stop and smell... The roadkill..."

JT81stang
Registered User
Posts: 96
Joined: Fri Nov 08, 2002 7:12 am
Location: Ontario, Canada

Re: Who has an I6 Fox Body?

Post #21 by JT81stang » Fri Jan 14, 2011 1:11 pm

Powerband - I've got mine for sale (haven't advertised it though) pm me and I'll send more pics if you don't mind travelling....... :lol:
Mean buzzin' half dozen

User avatar
xctasy
VIP Member
Posts: 6885
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: Who has an I6 Fox Body?

Post #22 by xctasy » Fri Jan 14, 2011 11:49 pm

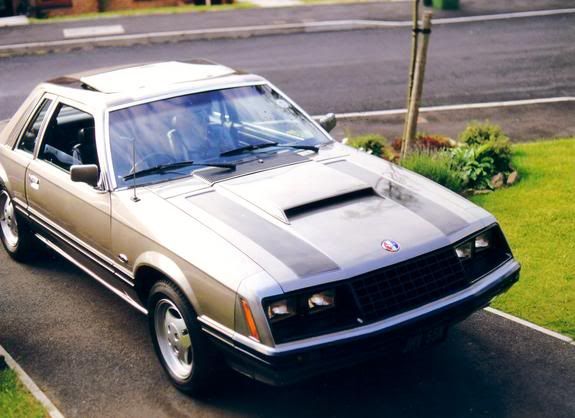

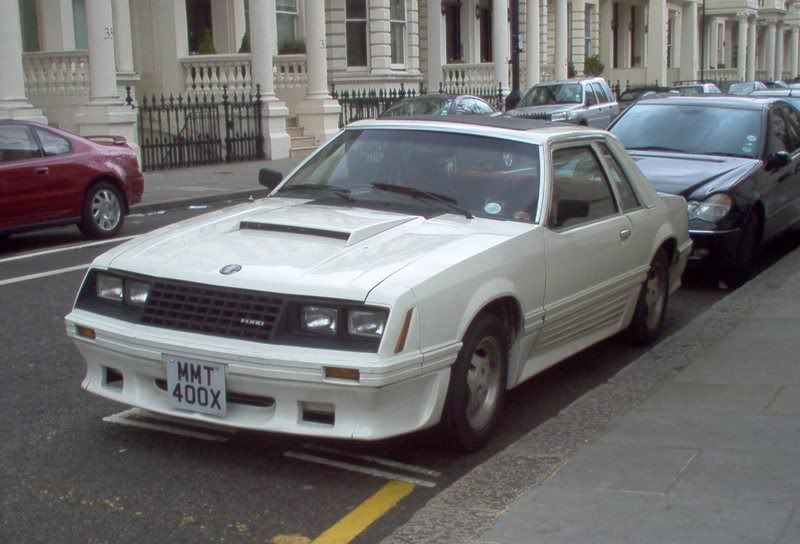

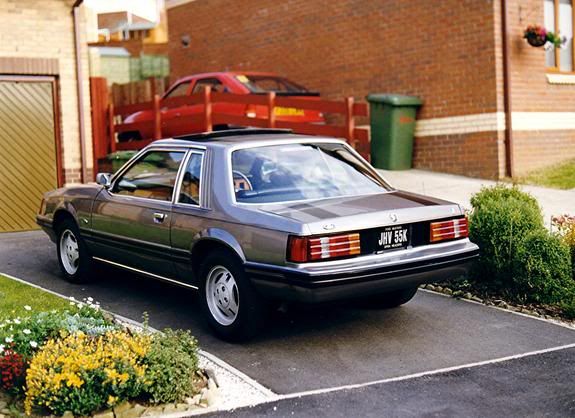

Here's the British spec 3.3 notchback, imported into Europe by Ford Advanced Vehicles in Britain. Lots were exported. Spot the changes. Despite the fact that Britian and Germany used the 2.8 V6 in all there bigger cars, the export Stangs seamed to always be in line sixes for some odd reason.




Lots of drive reports had I6 Mustangs or Capris too.

http://www.coverbrowser.com/image/motor-trend/326-9.jpg






If you check with other forums, most exports to foreign countries are anything other than the 4.2 or 5.0 V8

Most of the exported ones I've seen were 3.3 liter sixes, although my cousin had a 1980 2.3 Turbo Mustang Cobra imported in New Zealand in 1981. (My cousin was an orchardist, and used to pick up five speed 3.8 V6 Buick Skylarks and Chevy Monzas during the late 70's.) It would appear the gas crunch ment that a large majority of customers picked up the 2.3 liter base model, and the 4.2 and 5.0 liter options were not always popular. The 3.3 came standard with a stick shift, and the days of the Iran revolution and resulting OPEC fuel crisis caused rather odd buying patterns.
Last edited by xctasy on Sun Mar 26, 2017 9:39 am, edited 2 times in total.
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

User avatar
81Capri200
New Member
Posts: 2
Joined: Wed Mar 23, 2011 2:02 am

Re: Who has an I6 Fox Body?

Post #23 by 81Capri200 » Thu Mar 24, 2011 9:06 am

G'day all. Just secured my 1981 Capri 3.3l with a C4 from LA. It's in the shipping yard now awaiting transfer to the ship for departure downunder next week! Can't wait. :D
Terry, downunder in Melbourne, Australia

1971 Ford Capri 3000GT/V6 (Aussie assembled)
1981 Mercury 'White' Black Magic Capri I6 now with OZ 250 2V head

User avatar
super4ord
Registered User
Posts: 318
Joined: Thu Dec 18, 2003 8:06 pm
Location: Oklahoma City

Re: Who has an I6 Fox Body?

Post #24 by super4ord » Thu Mar 24, 2011 12:33 pm

WOW!!! Did anyone notice on the ASC Mclaren literature that Xctasy posted, that the engine was a 3.3 inline six with a VV(variable venturi) 2 barrel carb!!! I guess there may have actually been some production 2 bbl heads, besides the experimental one that the guy in Kansas has. I'd like to investigate this further.

Darrell
1978 Zephyr Reverse Trike 170 Inline 6/C4...Slowly Progressing Project
1980 Mustang Coupe 200 Inline 6/SROD 4 speed manual...Driving Hotrod Project
2007 Chevrolet HHR Panel Wagon Ecotec 2.2L 4 cyl auto...Daily Driver
2013 Dodge Grand Caravan SXT 3.6L Bent6...Wife's Daily Driver

User avatar
xctasy
VIP Member
Posts: 6885
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: Who has an I6 Fox Body?

Post #25 by xctasy » Thu Feb 16, 2012 3:06 am

Lookes like the Fox body 3.3 2-bbl carb was coded X. Wonder if any other info exists?
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

Lagerhead
Registered User
Posts: 132
Joined: Sun Jul 19, 2009 8:51 pm
Location: Palm Bay fl

Re: Who has an I6 Fox Body?

Post #26 by Lagerhead » Sun Mar 04, 2012 4:29 pm

I was just wonder if any body has tried to put a 300 in a fox body :?:
99.5 F350 lowered air ride strong PSD crew cab swb
48 ford coupe cage old school stock car 12.25 to 1 290 cilford cam, cliford 2x2 with webber 38/38,some cool old stock car headers, 240 head with big valves, bbc roller rockers

User avatar
xctasy
VIP Member
Posts: 6885
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: Who has an I6 Fox Body?

Post #27 by xctasy » Mon Mar 05, 2012 12:15 am

Yes, there were some pictures a while back of a Fairmont with a 4.9 carb six.

The oil pump hits the stock cross memeber and is close to the stock steering rack, that prevents getting the engine down and dirty with the stock parts.

The 240/300 block is about 2.5 inches taller just at the block, before the head and rocker cover is added. Foxes are quite shallow at the struts.

Since the engine is 10.3 inches tall at the block face verses about 7.8 for the 3.3, that's too tall to fit the stock hood . If you add a Fox Cobra style hood scoop, you can just about cover it up.
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

Lagerhead
Registered User
Posts: 132
Joined: Sun Jul 19, 2009 8:51 pm
Location: Palm Bay fl

Re: Who has an I6 Fox Body?

Post #28 by Lagerhead » Mon Mar 05, 2012 7:12 am

thanks for the reply
99.5 F350 lowered air ride strong PSD crew cab swb
48 ford coupe cage old school stock car 12.25 to 1 290 cilford cam, cliford 2x2 with webber 38/38,some cool old stock car headers, 240 head with big valves, bbc roller rockers

User avatar
xctasy
VIP Member
Posts: 6885
Joined: Sat Nov 09, 2002 10:40 am
Location: PO Box 7072 Dunedin 9011,South Island, NEW ZEALAND
Contact:

Re: Who has an I6 Fox Body?

Post #29 by xctasy » Mon Jun 04, 2012 11:16 am

81Capri200 wrote:G'day all. Just secured my 1981 Capri 3.3l with a C4 from LA. It's in the shipping yard now awaiting transfer to the ship for departure downunder next week! Can't wait. :D



Another fine Mercury rises in the antipodes. I've seen your machine on Four Eyed Forums. http://vb.foureyedpride.com/album.php?albumid=2177


Its an amazing machine. Good pick-up!! :thumbup: Nice that were pumping up the Fox body numbers down here. Good fortune for the 2V swap, that little 3.3 will love it.
XEC Ltd ICBE's Inter Continental Ballistic Engines-
FAZER 6Bi (M112 & EEC5) or FAZER 6Ti (GT3582 & EEC5) 425 HP 4.1L/250 I-6
FAZER 6V0 3x2-BBL Holley 188 HP 3.3L/200 I-6 or 235 HP 4.1L/250 I-6
X-Flow Engine Components Ltd http://www.xecltd.info/?rd=10

User avatar
JackFish
VIP Member
Posts: 2789
Joined: Thu May 26, 2005 7:31 pm
Location: Winnipeg Manitoba Canada

Re: Who has an I6 Fox Body?

Post #30 by JackFish » Mon Jun 04, 2012 12:56 pm

A 300 in a fox-body? Here ya go! :mrgreen:
1978 Ford Fairmont station wagon
1978 Ford Fairmont station wagon
Yup, I bought another one.
1996 Chevy Caprice 9C1 (3)
1999 Dodge Ram 2500

Who is online

Users browsing this forum: No registered users and 3 guests
