Who has the Offenhauser 3x1 aluminum intake?

Moderator: Mod Squad

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Who has the Offenhauser 3x1 aluminum intake?

Post #1 by Old man Dave » Wed Jan 10, 2018 11:19 pm

Couldn't find any posts about this. Does this thing work? Any problems installing or using? Thanks for any info.

User avatar
chad
Registered User
Posts: 4113
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #2 by chad » Thu Jan 11, 2018 1:20 am

Welcome! o.m.Dave !
There's many threads on this site. Some have DYI alternatives, some the original (there's at least 2 for the ford6), others one alternate co.
R U sure U don't mean "cast alu removable" intake (a la the Oz style)? Isn't the Offy iron? That's sold thru Summit'n others (ck our "4 sale" forum. I've seen um there too).
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #3 by Old man Dave » Thu Jan 11, 2018 2:27 am

There is one for sale on ebay, and it appears to be aluminum. Is there an easy way to search old posts by topic? Obviously I'm new here.

User avatar
cr_bobcat
Registered User
Posts: 689
Joined: Sat Sep 21, 2013 8:13 am
Location: Cedar Rapids, IA

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #4 by cr_bobcat » Thu Jan 11, 2018 7:00 am

It's an aluminum plate that mounts over the log. I would recommend VintageInlines. This way you are sure to get all the mounting hardware and the linkages.

https://www.vintageinlines.com/product-page/offenhauser-triple-manifold-adapter-1960-1968
Block: Stock C8 Block/pistons, C9-M head, 1.75/1.5 valves, dual spring, 1.65 RAU Rockers, port divider, direct mount Holley 4412-500, HEI w/20* advance, manifold vac, dual-out Arvinode exhaust, Clay Smith 264/274 110* installed w/ 4* advance, adjustable dual chain timing, C4 w/ shift kit, 3.20 (TBC) rear ratio, 9.44 SCR / 7.97 DCR

Build that Six with parts from http://www.vintageinlines.com

User avatar
chad
Registered User
Posts: 4113
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #5 by chad » Thu Jan 11, 2018 9:35 am

Old man Dave wrote:... Is there an easy way to search old posts by topic? Obviously I'm new here.

At the top right of each screen we have a search function...
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

User avatar
powerband
FSP Moderator
Posts: 1876
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #6 by powerband » Thu Jan 11, 2018 9:46 am

You didn't mention if you have a 'small block' or 'big block' six. For the integral intake 144/170/200/250, there are basically two different versions of the Offenhauser 3X1 aluminum adapter. The two Offy' versions fit (@ 60-67 vs @ 68-82) all small block six heads which are interchangeable between all the small blocks 144 to 250 cid but have different shape of the integral intake 'log'

Edelbrock also mfg'd a tri-power adapter for the early intake version.


If you search on offy or offenhauser you can find many postings on building and tuning this modification.

here's a post/thread on the basics.

viewtopic.php?f=1&t=76149&p=586466&hilit=hours#p586466

viewtopic.php?f=1&t=59024&p=453190&hilit=offy#p453190

have fun


"Take time to stop and smell... The roadkill..."

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #7 by Old man Dave » Thu Jan 11, 2018 3:04 pm

Sorry I didn't mention the engine size. I posted this in the small six section and assumed that would cover it. I am talking about a 200.

User avatar
cr_bobcat
Registered User
Posts: 689
Joined: Sat Sep 21, 2013 8:13 am
Location: Cedar Rapids, IA

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #8 by cr_bobcat » Thu Jan 11, 2018 4:39 pm

That covers it. As mentioned earlier though, there are different castings of the head. You'll need a different setup based upon what head you have. In 1969, the log got bigger and wider, so you would need the Offy manifold designed to fit the smaller diameter log. I would recommend calling Matt at VintageInlines and have your head casting number handy. This way you get the part that fits the first time. :beer:
Block: Stock C8 Block/pistons, C9-M head, 1.75/1.5 valves, dual spring, 1.65 RAU Rockers, port divider, direct mount Holley 4412-500, HEI w/20* advance, manifold vac, dual-out Arvinode exhaust, Clay Smith 264/274 110* installed w/ 4* advance, adjustable dual chain timing, C4 w/ shift kit, 3.20 (TBC) rear ratio, 9.44 SCR / 7.97 DCR

Build that Six with parts from http://www.vintageinlines.com

User avatar
chad
Registered User
Posts: 4113
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

buyin the tri-power

Post #9 by chad » Thu Jan 11, 2018 5:30 pm

Old man Dave wrote:Sorry I didn't mention the engine size. I posted this in the small six section and assumed that would cover it. I am talking about a 200.

Matt (at Vintage Inlines dot com)is one of the carriers for the ford6 performance Handbook. U may wanna get 1 of those to get up to speed on these i6 motors.
(U got 1 of the 6 models, Falcon or Thriftpower by name, manufactured over 36 yrs, bridgin into the EFIs thru the '96 final yr).
:nod:
It shows the tripower set up w/linkage/carbs/throttle.
What carbs will you use?
Last edited by chad on Fri Jan 12, 2018 12:06 am, edited 1 time in total.
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: buyin the tri-power

Post #10 by Old man Dave » Thu Jan 11, 2018 9:23 pm

What carbs would you recommend?

drag-200stang
Registered User
Posts: 974
Joined: Sun Oct 19, 2003 6:10 pm
Location: Michigan

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #11 by drag-200stang » Thu Jan 11, 2018 9:55 pm

At this point we know that your name is Dave and you are an old man that has a 200, :D but we do not know much about your car..what year is the head, stick , auto, rear gear, cam ,etc.. how do you plan on using the car..Your location would help, I am in Michigan in the mitten, there is one in a valley and a swamp. :wink:
Last edited by drag-200stang on Fri Jan 12, 2018 8:36 am, edited 1 time in total.
66 Mustang Coupe
200 turbo w/lenco 4-spd
stock adj. rockers, stock timing set, ARP studs
best 1/4 mile ET 9.85/best mph 139 on 8 lbs progressing to 15 lbs boost
Went 9's when 10's was fast.

User avatar
chad
Registered User
Posts: 4113
Joined: Sat Oct 24, 2009 9:51 am
Location: Lawrence Swamp, S. Amherst, MA

Re: buyin the tri-power

Post #12 by chad » Fri Jan 12, 2018 12:12 am

Old man Dave wrote:What carbs would you recommend?

Like drag-stang sez (implied) depends on whaja planning. But...

on a rd car (not mine, C avatar) I like lookin @ those ol glass bowls (is it Holly 1940 or 1904? there's both so I get confused. My LD dont help none neither!).
:oops:
"Big thing is only make one change at a time. Change 2 or more things at a time it becomes difficult to figure which change helped or hurt" turbo2256b » 1/16/2017
Chad - '70 LUEB on '77 frame (i.e. PS, D44, trapezoidal BB 9", 4.11), 250, NV 3550 & DSII to B transplanted, "T" D20/PTO, 2" SL, 1" BL, 4 discs, 33"X15", etc. Seeking: Hydraulic gear motor for Koenig pto. chrlsful@aol.com (413) 259-1749

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #13 by Old man Dave » Fri Jan 12, 2018 1:15 pm

OK...I'm not much of a typist, so I try to keep stuff short. The '56 is project #3 on my list of stuff to do. It needs pretty much everything, but is surprisingly rust-free. I would just like to get it on the road and eventually make it my daily driver. Don't have the money or ambition to restore it to stock. The tri-power just sounds like something cool to try, along with headers. Don't have any plans to go crazy building this little engine. Just want it to look and sound good. Thanks for your interest. BTW, what carbs do guys usually run on this setup? I have two of the stock carbs...They worth re-using?

User avatar
jdn21758
Registered User
Posts: 145
Joined: Tue Jun 08, 2010 1:28 pm
Location: the netherlands

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #14 by jdn21758 » Fri Jan 12, 2018 1:28 pm

hallo dave i have used carter YF carbs,,


watch on you tube my channel if you like search my name
jan douwe noordenbos there some films from my triple carb
mustang.
greeeetzz,,, jan douwe noordenbos from the Netherlands.

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #15 by Old man Dave » Fri Jan 12, 2018 2:36 pm

Thanks for the info. Enjoyed the videos.

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #16 by Old man Dave » Fri Jan 12, 2018 5:00 pm

BTW, this is the first time I've ever messed with a Ford six. My other two projects have BBC's in them. And, I have managed to end up with two 200's - One is a '66 and the other is a '78. Just from eyeballing it, I think the '78 has a large log manifold. Can anyone confirm or refute that? Thanks again.

User avatar
bubba22349
Global Moderator
Posts: 8433
Joined: Sun Jan 03, 2010 4:46 pm
Location: Flagstaff, Az. 86005 near the old Route 66

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #17 by bubba22349 » Fri Jan 12, 2018 6:41 pm

:beer: congrats, yes if the 1978 still has the stock head on it then yes it's the large log look for a D8 prefix on the log. This would use an Offy 3 X 1V manifold number 5970, (see below link). Good luck :thumbup: :nod:

https://www.speedwaymotors.com/Offenhau ... gJ8SvD_BwE
A bad day Drag Racing is still better than a good day at work!

I am still hunting for a project car to build but with my current low budget it's not looking so good. My Ex- Fleet of Sixes these are all long gone! :bang: 1954 Customline 223 3 speed with O/D, 1963 Fairlane project drag car with BB6, 1977 Maverick 250 with C4, 1994 F-150 a 300 with 5 speed.

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #18 by Old man Dave » Fri Jan 12, 2018 8:39 pm

Thank you!

User avatar
jdn21758
Registered User
Posts: 145
Joined: Tue Jun 08, 2010 1:28 pm
Location: the netherlands

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #19 by jdn21758 » Sun Jan 14, 2018 5:51 am

flat log after 68

round log before 68

greetzz JD

User avatar
jdn21758
Registered User
Posts: 145
Joined: Tue Jun 08, 2010 1:28 pm
Location: the netherlands

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #20 by jdn21758 » Sun Jan 14, 2018 6:24 am

this is my engine 200 cui with a flat log after 68.



greetz,,JD

User avatar
jdn21758
Registered User
Posts: 145
Joined: Tue Jun 08, 2010 1:28 pm
Location: the netherlands

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #21 by jdn21758 » Sun Jan 14, 2018 6:38 am

this is the Original 68 engine 200 cui my next project with a round log.







greetz,,JD.

Old man Dave
Registered User
Posts: 17
Joined: Wed Jan 03, 2018 4:02 pm

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #22 by Old man Dave » Sun Jan 14, 2018 12:39 pm

Sweet! Thanks for the pic's.

User avatar
JackFish
VIP Member
Posts: 2767
Joined: Thu May 26, 2005 7:31 pm
Location: Winnipeg Manitoba Canada

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #23 by JackFish » Sun Jan 14, 2018 2:22 pm

Wondering if it might be possible to rig on of these up with a cable throttle, as I have a fox-body?
1978 Ford Fairmont station wagon
1978 Ford Fairmont station wagon
Yup, I bought another one.
1996 Chevy Caprice 9C1 (3)
1999 Dodge Ram 2500

vssman
Registered User
Posts: 199
Joined: Tue Mar 27, 2007 12:51 pm
Location: CT

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #24 by vssman » Sun Jan 14, 2018 6:52 pm

JackFish wrote:Wondering if it might be possible to rig on of these up with a cable throttle, as I have a fox-body?


Yes you can. I changed my mechanical linkage pedal to a cable throttle pedal on my 63 Falcon. The outer carbs are still activated via the rods off of the center carb.
63 Falcon 'vert running a 68 200CID Tri carb and a few other goodies

User avatar
powerband
FSP Moderator
Posts: 1876
Joined: Fri Nov 08, 2002 6:45 pm
Location: Mid Hudson Valley - \H/

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #25 by powerband » Sun Jan 14, 2018 7:02 pm

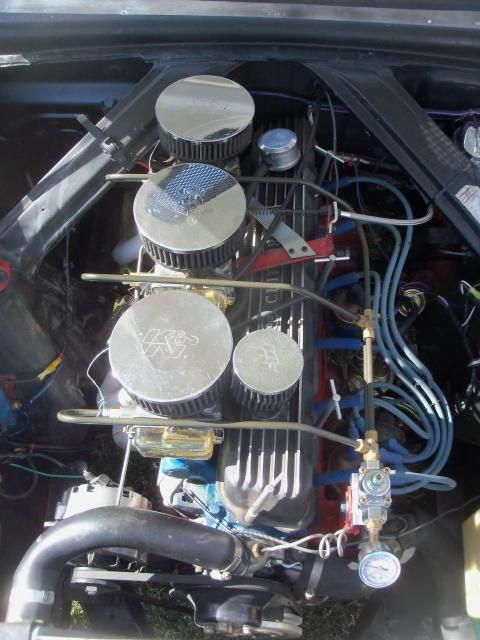

original Offy linkage mated to Maverick six pedal and over VC cable mount / Holley 1904's.






haev fun
"Take time to stop and smell... The roadkill..."

User avatar
JackFish
VIP Member
Posts: 2767
Joined: Thu May 26, 2005 7:31 pm
Location: Winnipeg Manitoba Canada

Re: Who has the Offenhauser 3x1 aluminum intake?

Post #26 by JackFish » Mon Jan 15, 2018 7:18 pm

Aah, very nice, yah that might work for me. :idea:
1978 Ford Fairmont station wagon
1978 Ford Fairmont station wagon
Yup, I bought another one.
1996 Chevy Caprice 9C1 (3)
1999 Dodge Ram 2500
