All Small Six 200 Log Head Mod Attempt

[Bill1958]

Hey guys...still not much going on due to $$$...lack thereof. Still got the house but it's been a character building 12+ months.

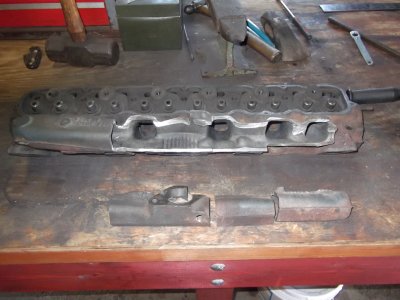

Like I'm the only one ha-ha. Anywho...saw some pretty cool videos on log mods...and since it doesn't cost anything to chop one up I figured I could take out my FRUSTRATIONS on it....in a controlled manner. The scrap pieces will be used for practicing my cast iron welding with an old Henrob torch. Will probably install short tubes to a flange and then go from there. Just something to do to keep my mind and hands busy till better days slap me upside the head : )



[awasson]

Well, you’ve got my interest. I’ve seen some pretty neat mods that go straight up and mate 3 down draft 2 barrel carbs (Weber 38/38). I think that could be set up quite effectively. Removing that big log will probably reduce the heat around the carb too. Maybe a heat shield that deflects heat from the exhaust could be incorporated into your design too.



[powerband]

.
... if you can 'practice' with the Henrob, there's most anything you can do with the cut-off area.
.
always liked the box plenum - with a square bore 4Bbl flange to make carb/FI swaps simple ...
.
equal length tubes to a carb or turbo flange could be most effective ...
.
still have to consider fitting fab' in and under hood...
.

have fun
.
"Just something to do to keep my mind and hands busy...":
.
. . . .
