All Small Six 68 small log head porting [ including final DYNO RESULTS ]

[clochard68]

I was also considering doing a face cut on the exhaust valves, but I think the standard chamfer that is on the exhaust valve right now is enough... Seems like a bigger chamfer would reduce the seat margin too much? Any suggestions?



[clochard68]

Did the 30° back cuts on the intake valves today. There is still a little ledge, but can't cut any deeper without getting into the seat:



[clochard68]

A little update on the progress:
It's been a little over 900 miles now since the cam break in and the 200 runs good except for the head gasket that leaks from time to time (project for the winter again!). So I thought it's time for the second dyno test to see how much gains the small log head is capable of. It is scheduled on saturday, and I will post the results with the comparison of the first dyno test (it's also on page 1) and a summary of all modifications.

In the meantime I wanted to share a picture of my wife from 3 weeks ago on our wedding day "working" on the 200
So I wish everyone also a happy 2024 and may all projects go as planned!



[chad]

that’s great. Like to see a 1/4 drive ratchet w/3/8th socket in her left hand lol

Hopefully the dyno runs are on the same machine, all other factors are consistent but
“...to see how much gains the small log head is capable of...” what’s measured. Let us
know how ya do.
Good Luck !



[clochard68]

Thanks Chad!
Yes the dyno is exactly the same as the last time



[chad]

Thnx 4 post back!

Let us
know how ya do.
Good Luck !



[clochard68]

please delete



[clochard68]

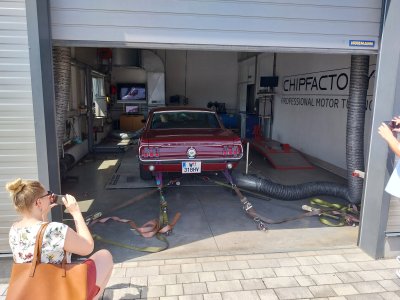

So we were at the same dyno today like we were way back in october 2020 and made 2 pulls. One with my personally designed velocity stack for the weber 32/36 (that was the worse pull) and one without the velocity stack. So my idea of a velocity stack inside a stock air cleaner didn't work unfortunately, maybe it is to close to the top lid and chokes the carburetor a little...



The results exceeded my expectations to be honest.
The best pull made 124.5 hp at around 4200 rpm at the wheels with a max of 300 Nm (=221 ft lbs). That is a gain of 53.3 hp to my baseline from almost 4 years ago.

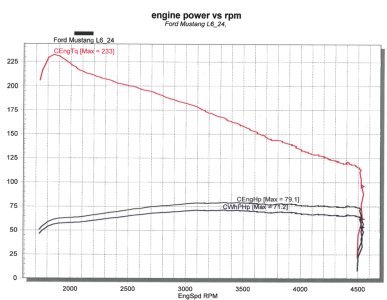

Here is the baseline pull from 2020. Ignition, carburetor and valves where not in best shape. The engine wouldn't rev over 4500 rpm, I guess because of valve float:


The specs were:
dished pistons, 0.030 over
stock hydraulic camshaft 240 advertised duration, 4.5° retarded (measured)
Holley 1940 one barrel carburetor
calculated CR 8.49:1, calculated DCR 7.48:1
stock 1-3/4" exhaust with stock manifold

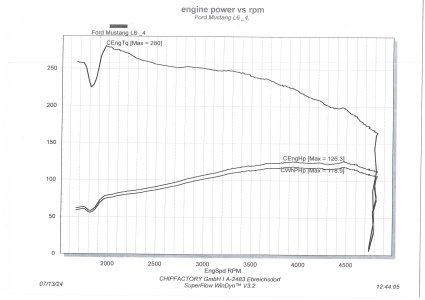

Here is the dyno sheet from the best pull today, that was without the velocity stack. With the new beehive valve springs 5000 rpm was no problem:

The specs as of now:
dished pistons, 0.030 over
Isky Mile-A-Mor hydraulic camshaft 248 advertised duration, installed straight up (measured)
Weber 32/36 progressive two barrel carburetor (little work done to it, page 7) with opened up and shaped 2 to 1 adapter
calculated CR 9.08:1, calculated DCR 7.95:1
2.5" single exhaust with Flowmaster 50 eries muffler
exhaust port divider
Pacemaker longtube headers
cold air intake from grille, WIX paper air filter
ported small log head, backcut on intake valves (all valves standard size)
1.65 roller tip shaft rockers and beehive valve springs
HEI ignition, recurved from @wsa111
MSD street fire coil with low resistance bushing and MSD spark plug wires
NGK WR5 spark plugs, gap 0.055"
2 row aluminum radiator and high flow water pump

And here are some videos of the pulls:



[clochard68]

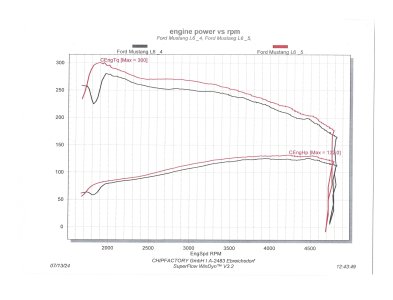

And here is the comparison of the two pulls from today, the red one is without the velocity stack I worked so hard on I could have sworn it improved the performance, but the dyno numbers say otherwise...

And the pull with velocity stack alone:



[PSIG]

And here is the comparison of the two pulls from today, the red one is without the velocity stack I worked so hard on I could have sworn it improved the performance, but the dyno numbers say otherwise...

Perhaps it still could. By adding the hump, you smoothly directed air into a direct head-on collision with random turbulence. Adding a top-flow guide could direct the air down, instead of into collision chaos. OK, not as smooth as my quickie diagram , but that's the idea.



This concept comes from the testing of X-Stream filter housing tops, where adding the extra filter area didn't help flow, and often hurt it on 4V carbs. The solution was a short 'funnel' insert on the stud to block the confusion and guide it into the carb inlet. Bingo, flow jumped. Your base has smooth flow guiding, but the top does not, in order to finish guiding into the inlet. That's my hypothesis, and I'm sticking to it.



Re-testing without a dyno can be found with diagnostic performance measurements (including changes in AFRs), indicating improvement or not. There is a lot we can do to gather data without a dyno. Sure, a dyno is quick and specific, but creative street testing can give answers as well.



[Frank]

clochard68- congrats on the significant improvements! Impressive.
PSIG is right about the shape of the air entering the airhorn. Before computers to assist the efforts, in the 1960's the designers of the Quadrajet got max dyno results with the factory drop-base air filter housing with the paper element installed. (It was a high performance dual snorkel model, BB Chevy). 15 more HP than no filter housing at all, and 10 more than the filter housing with no element in it. The smooth upward curve of the filter base gave the air a curved arc which smoothed and concentrated it just above the airhorn. No element in the housing, the air was streaming in directly from the snorkels and was more turbulent.
Reducing turbulence at the carb entrance assists mixture balance, and this can be as much of a power factor as smoother air=more air. Turbulence or vacuum on the fuel bowl vent that's in the airhorn changes the head pressure on the fuel in the bowl which changes the pressure of the fuel entering the jet(s). A restricted intake (vacuum at the vent tube mouth) causes the carb to go lean. Turbulence at the vent has the same effect. When I straightened out the air into an Edelbrock with a 3" tall stack between the air filter and carb, there was a slight but noticeable performance increase, and the heavy throttle mixture enriched 8% with no jet changes. The E'brock has a terrible shape where the air enters, and causing all the air to come straight down into the carb gained power and mixture stability.
The net effect of turbulence varies with every carb design, but regardless, tumbling air entering the carb hurts performance.



[clochard68]

Thanks Frank!

As you and PSIG mentioned the area above the velocity stack might be the problem. The inlets of the carb are off-center in the air cleaner housing and therefore the lid sits in an angle above the openings, it's far from ideal...
For now I will leave the velocity stack off, and maybe somewhere in the future print an adapter for the lid to straighten the air flow like PSIG has pictured above.
Would require another dyno test to verify that it works also
