Build Thread Turbo 250 Mod Log 2.0

[powerband]

"... if I can sneak up on 18 - 20psi without breaking anything,..."
.
real interested in your thorough build, a T3 Draw-Thru setup (Buick) enabled enthusiastic driving until a little too much enthusiasm up @ 1 Bar and oil across windshield. moved to Blow Thru SC'd setup with basically stock 250 better managed, but have set of Forged pistons - probly same ? ...
.
. .
.
.
.

.
.
have fun



[tjnavyblue]

"... if I can sneak up on 18 - 20psi without breaking anything,..."
.
real interested in your thorough build, a T3 Draw-Thru setup (Buick) enabled enthusiastic driving until a little too much enthusiasm up @ 1 Bar and oil across windshield. moved to Blow Thru SC'd setup with basically stock 250 better managed, but have set of Forged pistons - probly same ? ...
.
. .
.
.
.

.
.
have fun

Those are neat and thoughtful setups, thanks for sharing. I love that picture of the draw through.

What do you think caused that ring/ring land to fail? Not enough gap?

Those are the same forged TRW's that are in this motor. Too bad they don't make them anymore.



[tjnavyblue]

Didn't get a ton done on this project the last couple days but I did pick up an all aluminum L33 that I've been looking for for awhile for the square body project. They're kinda hard to find and my local junkyard had one. Going on the shelf until this is done.



Here are some details I had on my phone I hadn't uploaded yet:

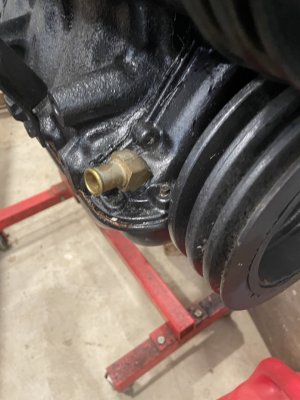

Turbo drain is this 45 degree fitting drilled and tapped through the aluminum timing cover. There's a goldilocks amount of space there on that little rounded corner, and it drops straight into the pan.

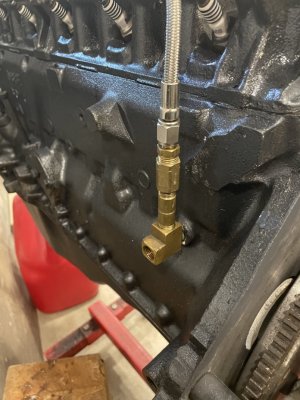

Oil pressure tees and what not. I'm going to add one more tee in place of that coupling, so I can see oil pressure under the hood too. Bottom port is for the inside gauge.

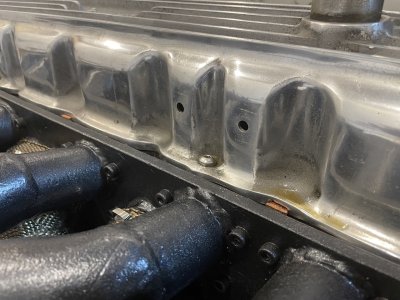

This Edelbrock valve cover came with these two holes in it. Any idea what these were used for? Trying to think if I could do anything useful with them before I plug them. What's that quote about not letting any good crisis go to waste, etc etc.



[tjnavyblue]

.
have fun

@powerband - where does the breather back towards the firewall with the braided silicone hose connect - is that a crankcase breather via the fuel pump block off plate?



[powerband]

... where does the breather back towards the firewall with the braided silicone hose connect - is that a crankcase breather via the fuel pump block off plate?
.
crankcase pressurization is a basic issue needing to be seriously addressed if heading up in boost . management varies from sophisticated OEM and racing configs' to simple exhaust pipe siphoning...
.
SC'd Mav/Com 250 latest non-sophisticated system for occasional boosts of enthusiasm, VC and Fuel blockoff to cool-cans :
. . .
.
did pick up' an Audi air pump recommended as a forced evac' system triggered by a boost sensor set to needed remedy to play with ...

have fun



[tjnavyblue]

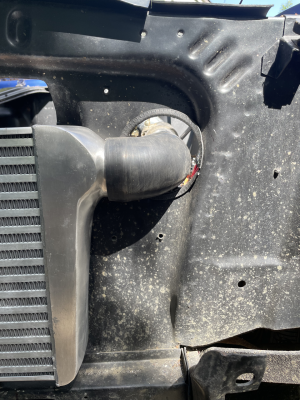

Didn't feel like cutting up the inner fender so I got a shorter intercooler. 25" end to end is widest you can fit inside the inner fenders on a round body, fyi. My other one was 28" and just couldn't make it work.

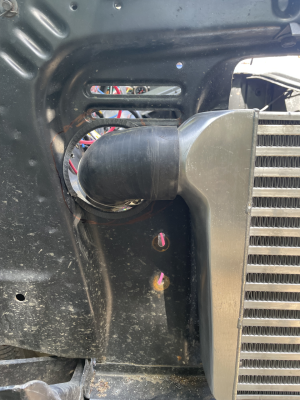

Used a 4" hole saw like we use to cut out for ceiling boxes in drywall, and then wrapped the holes with some windlace I had from another project (but not before I cut myself test fitting.)



[tjnavyblue]

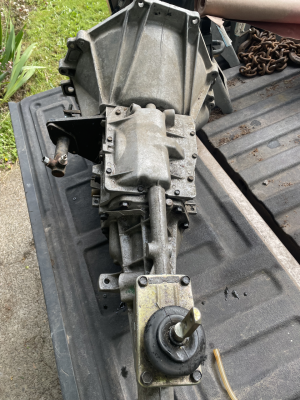

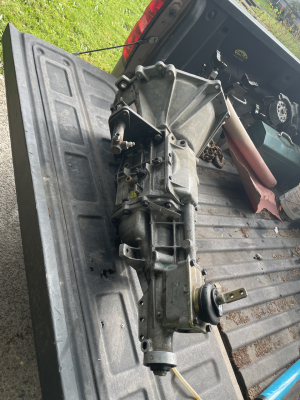

Have two T5s. Needed to ID them to see which to use.

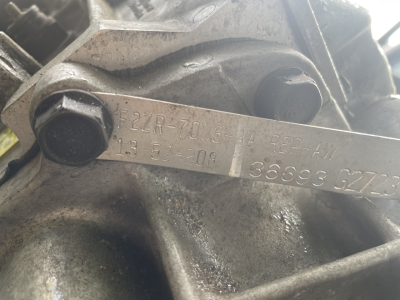

First one is ID'ed as 13 - 52 - 208 on the tag:



[tjnavyblue]

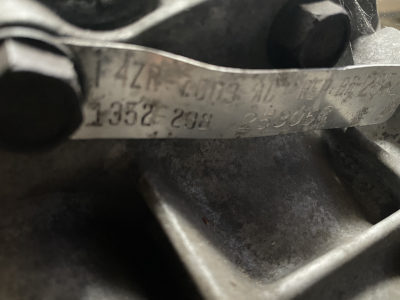

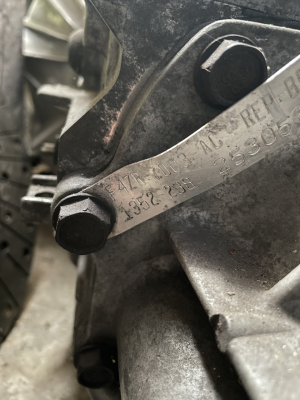

Second one is 1352 - 238:

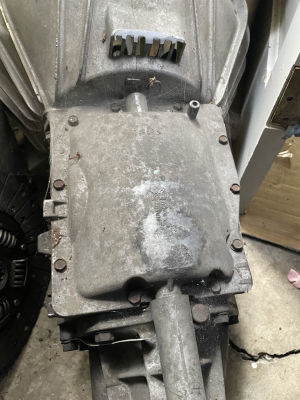

Has a different top cover:

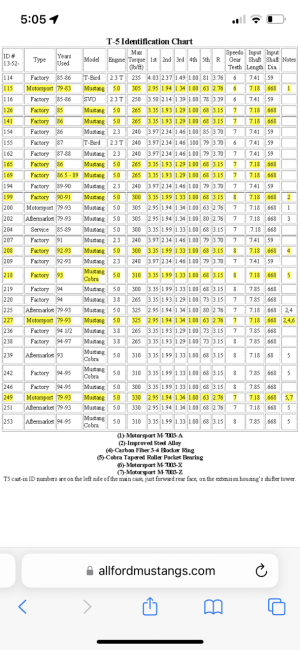

Here's the ID table floating around the interwebs:


Looks like the first trans, the 13-52-208, it is. It did shift and perform fine when running NA, so we'll see how she holds up.

I'll take the hydraulic slave off it, since this car has a cable clutch setup already. Someone hit me up if you want a hydraulic slave bracket for a T5 that works well in these Falcon based cars. It's waterjet cut 3/8" (1/2"?) plate, with I think a slave from a chevy K10.



[Jmustang_65]

Best T5 id site. Is this one I think.

Identification Key to Borg-Warner T5 transmission ID Tags

How to identify a Borg-Warner T5 transmission ID Tags

www.britishv8.org

1352-208

Ford 1992 5.0L Mustang WC

Y

3.15

3.35

1.99

1.33

1.00

0.68

1352-238

Ford Mustang 3.8 V6 WC

V

3.15

3.35

1.93

1.29

1.00

0.72



[aussie7mains]

We have a T5 down here in AU falcon sixes that is 3.25 in first, not shown on all USA listings. Earlier models have a 3.45 first. v8s are 2.95 with the longer input shaft.



[funkaholik]

Subscribed to watch how this progress unfolds. On behalf of all the masses, thanks for taking on this project in order to further our education and knowledge.

Your first post in this thread should be required reading for every young, over-enthusiastic car guy (or gal).



[Jmustang_65]

Any update?
