All Small Six The 'Ideal' 200 Built By Committee

This relates to all small sixes
1966Mustang

1966Mustang

ALL THE THINGS
Staff member
Subscriber
  • I picked up a 1978 200 a while ago, for no other purpose other than I was bored and needed a road-trip to New Jersey.
  • The head has been cleaned and no cracks found. It is sitting on a shelf, partially pocket ported ... (for sale soon)
  • The block has not been inspected yet. It is sitting on an engine stand. Assume it's good and can be bored.
  • Also assume it's going in my 65 Mustang Coupe. My HP goal is... about 400ish
  • Reply with your suggestions/ideas on the Carb/EFI, Ignition, Pistons, Cam, AL Head?, Tranny, Reardiff, Exhaust, Turbo???
  • Upvote the replies you like, downvote the ones you don't (up/down arrows on the right of the replies).
  • Let's have some fun with this!
As 'decisions' are made, they'll be posted here, subject to change.

Added Google Sheet Feb 9, 2020 for P/Ns and Purchasing Dept. Progress...
docs.google.com

200 Built By Committee

BOM Seq,Order By Date,Part Desc,Part Num,Vendor,SuggestedBy,ItemURL,Notes,Contact,Email,QuoteNum,QuoteDate,QtyOrdered,Price,Total,Date Ordered,Date Received,Date Delta Days 10,BLOCK RELATED 10.1,200CID Block D8BE,D8BE,Craigslist...,Craigslist Bought,1,$80.00,$80.00 10.11,3/1/2021,Dual Roller Tim...
docs.google.com docs.google.com

Mostly Decided:
  1. Holley Super Sniper 4150 650HP PART# PART# 550-520 - https://www.holley.com/products/fue...sniper_efi/sniper_4bbl_tbi_kits/parts/550-520
    1. Sniper ignition, etc
  2. VI AL Head #10269 Ported - https://www.vintageinlines.com/product-page/deposit-only-aluminum-head-package
  3. Extended Valve Stems +.30 - re note to Matt @ VI stem add +.30 to length as default
    1. SI
    2. Manley
  4. 1300909705/177210 BW Airwerks Turbo S300SX-E 8378 61.44mm T4 .88 AR Journal bearing
  5. F38-Black-14.5psi - Tial F38 38mm Wastegate Black 14.5psi
  6. QBOV-Black-11psi-AL - Tial Q BOV 50mm 11psi
  7. Camshaft - Solid-Lifter Cam CompCams Card 68362
  8. Lifters - Oil Hole Solid Lifters CompCams SKU 817-12
  9. Roller Rockers - RAU - F-44RA & F-44RRA? - http://rockerarms.com/pages/rollerfordcad.html
  10. Adjustable Timing Gear Set - PART# JPP-200-DRC - https://www.vintageinlines.com/product-page/dual-roller-timing-chain-set-170-200ci
Developing and Can-Do:
  1. Connecting Rods - Pauter Engineering FOR-235-565-1248F
  2. Custom forged 2618 alloy pistons - http://racetecpistons.com/
To be Developed or Figured on:
  1. Equal Length Header/T4 Collector
  2. Harmonic Balancer / Damper
    1. http://www.atiracing.com/contact/contactati.htm
    2. B-H-J - Spoke with Chris, good conversation
    3. Fluidamper contacted - nope
    4. ATI - too much normal stuff to do custom.
  3. Oil Pump
    1. Contacting Pauter on oil pump mods.
    2. 250CID Pump, Adapter and drive from D2S Racing Products Inc. ( @drag-200stang )
  4. Oil Pan
    1. Canton?
    2. Modify stock pan, develop windage kit

Added Jan 29,2021 7PM

Vendors Contacted/Emailed:

Magnum Machine Inc.
https://www.magnummachineincorporated.com
Magnum Machine Inc.
921 Business Park Dr
Chesapeake, VA 23320
Telephone: (757) 424-1440
FAX: (757) 424-6210
Owner says- "No prob, I like the oddball builds"

Rocker Arms Unlimited - https://rockerarms.com
16575 Clear Creek Rd.
Redding, CA. 96001
Tel: 530-242-1316
Fax: 530-242-1332
Email: rockerarms@rockerarms.com
re: @bubba22349 's suggestion on roller rocker availability, made in usa

Pauter Machine - https://pauter.com
Don Pauter
367 Zenith Street
Chula Vista, CA 91911
Tel: 619-422-5384
Fax: 619-422-1924
Email: info@pauter.com
Custom Connecting Rods - FOR-235-565-1248F
And oil pumps...
https://pauter.com/parts/oil-pumps/
contacting about HV 200 oil pump mods.

RaceTec Pistons - https://RaceTecPistons.com
Randy Gillis
15681 Computer Lane
Huntington Beach, Ca 92649
Tel: 714-903-4362
Fax: 714-891-0190

CAA Racing Products/Protohawk (torque-plates/other engineering)
https://www.protohawk.com/ https://ccaracing.com/
Michael Gallo
- offered to sanity check our torque plate. because... no one wants to wreck a chunk of stock :D - which is awfully gracious of the owner.
- Makes insert bushings too: https://ccaracing.com/engine-block-tooling/

Last edited:
Sort by date Sort by votes
The reason why you don't need the Programmable 6AL-2, as I stated earlier, The Holley Sniper controls the ignition timing.
The ignition box is a slave unit being triggered by the Holley Sniper.

Last edited:
Upvote 0 Downvote
Upvote 0 Downvote

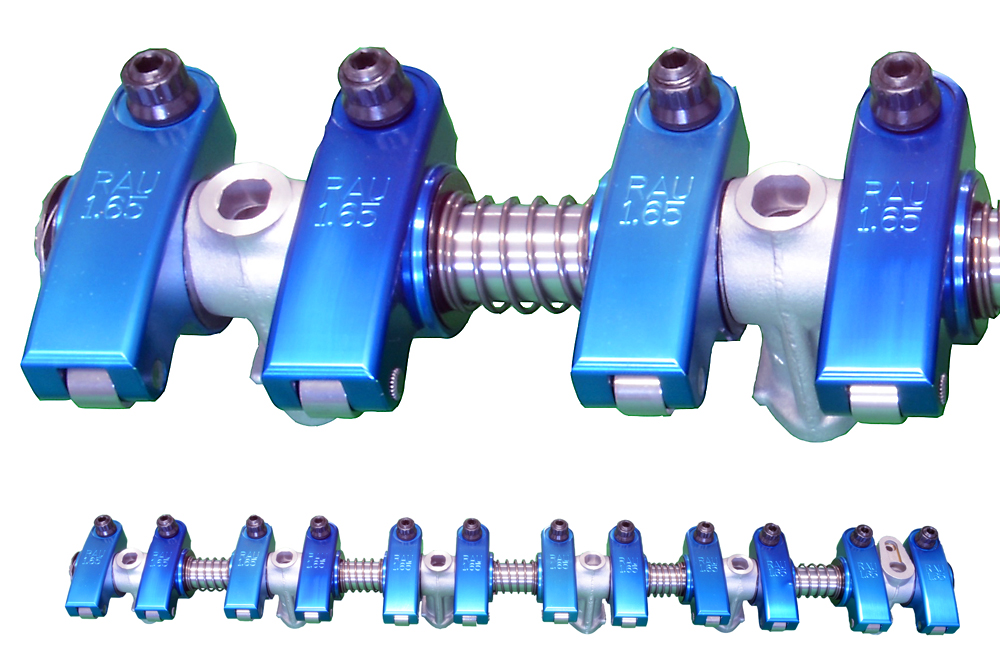

http://rockerarms.com/pages/ford.html Scroll all the way to the bottom of the list, there are 2 items -
F-44RA & F-44RRA - but the application info is not filled in the table.

Upvote 0 Downvote
pmuller9 said:
Do you have someone that can fabricate the header?
Click to expand...
You're lookin' at him pal... :D I will check with some local sources.
@pmuller9 - we should endeavor to have a off-the-shelf solution at the 'end' of this.

I 'have' a C-4 in the car now hooked up to the engine in my sig. The other trend I've noticed are cars going to automatic...

Last edited:
Upvote 0 Downvote
An auto tranny is good. A high stall speed torque converter will get you into the power band sooner as well as help turbo spool time.
You won't have to worry about engine power below stall rpm.
You will need to beef up the C4.

Glad to see you have fabrication skills.

Upvote 0 Downvote
I'll have to find someone to cut some header flanges, but otherwise I can get that cobbled together. @CNC-Dude maybe? @CoupeBoy
I also have a local source for CNC cutting stuff, plus I'll ask the machinist I'm working on. - he did say "I like the oddball projects"

Upvote 0 Downvote
Last edited:
Upvote 0 Downvote
You can draw up the flanges and have them waterjet cut.
Here are the pictures of "67straightsix" equal length turbo headers for his 67 Mustang.




Upvote 0 Downvote
pmuller9 said:
Here are the pictures of "67straightsix" equal length turbo headers for his 67 Mustang.
Click to expand...
Yeah, seen those.. so, the concept there is... literally the same distance in to out through all ports - i.e. the path is - lets say - 36" through all tubes terminating at the same place.

Saw something about plumbing under the engine to the driver side....

Note: Buy good starter.

Last edited:
Upvote 0 Downvote
A 200 six is relatively small so the long tube header helps with overall torque.
The other advantage of long tubes is they actually provide scavenging and can drop the pressure at the exhaust port to zero.
I've spent considerable time data logging our turbo engines from the past

In order to help with heat the header can be thermal coated and a thermal blanket can be used on the turbocharger.


Last edited:
Upvote 0 Downvote
